output.h File Reference

#include <fstream>
#include <sstream>
#include "fpmas/api/runtime/runtime.h"
#include "fpmas/scheduler/scheduler.h"
#include "fpmas/api/io/output.h"
#include "fpmas/communication/communication.h"

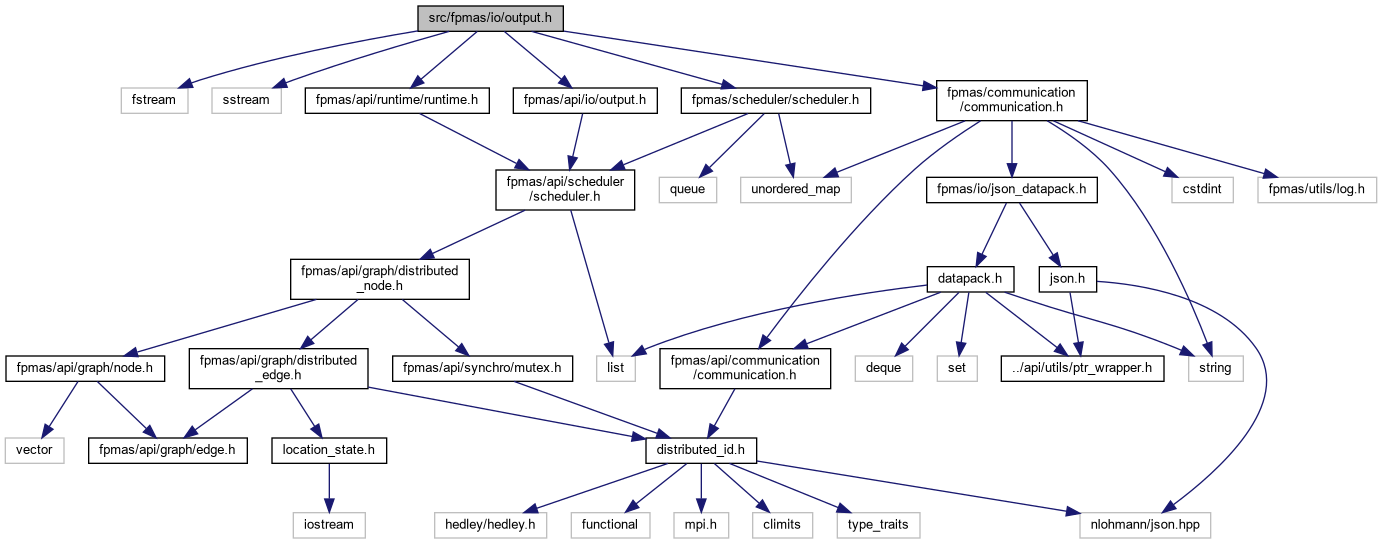

Include dependency graph for output.h:

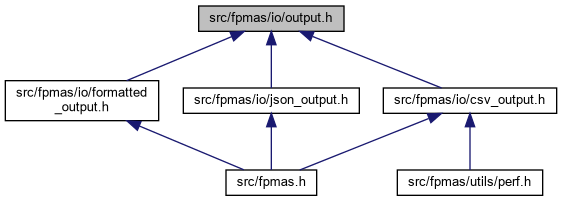

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	fpmas::io::Void
struct	fpmas::io::Local< T >
class	fpmas::io::Local< T >::Single
class	fpmas::io::Local< T >::All
struct	fpmas::io::Reduce< T, BinaryOp, Mpi >
class	fpmas::io::Reduce< T, BinaryOp, Mpi >::Single
class	fpmas::io::Reduce< T, BinaryOp, Mpi >::All
class	fpmas::io::Cout
class	fpmas::io::StringOutput
class	fpmas::io::FileOutput
class	fpmas::io::DynamicFileOutput
class	fpmas::io::OutputTask
class	fpmas::io::OutputBase

Namespaces
namespace	fpmas
namespace	fpmas::io

Detailed Description

fpmas::api::output related implementations.

FPMAS defines a powerful output system that can be used to efficiently and easily collect data accross processes.

Data can be locally fetched on each process using a Watcher instance. Data can then be gathered, summed, filtered or any other operation thanks to the usage of DistributedOperation types, described below. For concrete usage and implementations, see fpmas::output::Local, fpmas::output::Reduce and fpmas::output::DistributedCsvOutput.

DistributedOperation Trait

A DistributedOperation, that can for example be used by fpmas::output::DistributedCsvOutput to specify distributed CSV fields, must satisfy the following requirements.

Member types

Member Type	Description
Type	Datatype used by local watchers
Params	Extra parameters that can be passed to Single or All
Single	Operator used when data must be returned on a single process
All	Operator used when data must be returned on all processes

In addition, Single and All must satisfy the following requirements:

Single

Constructor

Single must define a constructor with the following signature:

Single(
    fpmas::api::communication::MpiCommunicator& comm,
    int root,
    const Watcher<T>& watcher,
    const Params& params
    )

Parameters

comm	MPI communicator
root	process on which data must be returned. Data returned on all other processes is undefined.
watcher	local watcher used on each process
params	extra parameters

Call operator

Single must define a call operator that does not take any parameter and returns a instance of Type:

Type operator()();

This method must return fetched data if the current process is root: results returned on other processes are undefined.

All

Constructor

All must define a constructor with the following signature:

Single(
    fpmas::api::communication::MpiCommunicator& comm,
    const Watcher<T>& watcher,
    const Params& params
    )

Parameters

comm	MPI communicator
watcher	local watcher used on each process
params	extra parameters

Call operator

All must define a call operator that does not take any parameter and returns a instance of Type:

Type operator()();

This method must return fetched data on all processes. Notice that this does not mean that fetched data is the same on all processes (see for example fpmas::output::Local).
