fpmas::api::communication::TypedMpi< T > Class Template Reference

#include <communication.h>

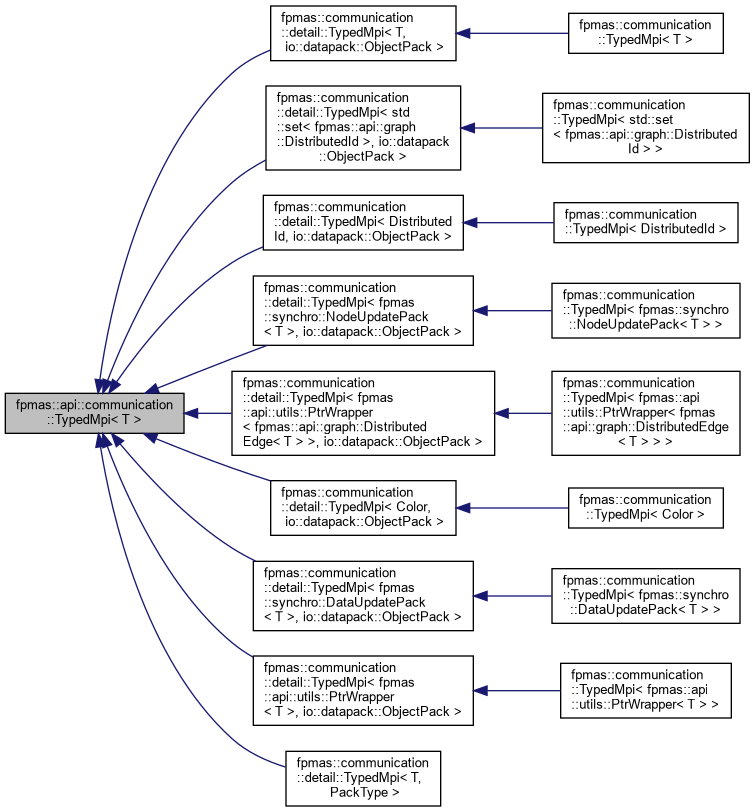

Inheritance diagram for fpmas::api::communication::TypedMpi< T >:

Public Member Functions
virtual std::unordered_map< int, std::vector< T > >	migrate (std::unordered_map< int, std::vector< T > > export_map)=0
virtual std::unordered_map< int, T >	allToAll (std::unordered_map< int, T > export_map)=0
virtual std::vector< T >	gather (const T &data, int root)=0
virtual std::vector< T >	allGather (const T &data)=0
virtual T	bcast (const T &data, int root)=0
virtual void	send (const T &data, int destination, int tag)=0
virtual void	Isend (const T &data, int destination, int tag, Request &req)=0
virtual void	Issend (const T &data, int destination, int tag, Request &req)=0
virtual void	probe (int source, int tag, Status &status)=0
virtual bool	Iprobe (int source, int tag, Status &status)=0
virtual T	recv (int source, int tag, Status &status=Status::IGNORE)=0

Detailed Description

template<typename T>
class fpmas::api::communication::TypedMpi< T >

A conveniently templated MPI wrapper to handle any type of data.

Provides an intuitive API to send / receive objects of type T through MPI, without having to manually serialize / unserialize data and specify send / receive buffers.

Of course, serialization / unserialization rules must still be specified at the implementation level.

For example, implementations might be based on a JSON or XML serialization of T, on custom MPI Datatypes, or on any other custom protocol.

Member Function Documentation

migrate()

template<typename T >

virtual std::unordered_map< int, std::vector< T > > fpmas::api::communication::TypedMpi< T >::migrate ( std::unordered_map< int, std::vector< T > >  export_map )

pure virtual

Performs a migration of data across all processors.

The "migration" operation follows the same rules as MpiCommunicator::allToAll, except that vectors of T instances can be used, for convenience.

Parameters

export_map

vectors of data to send to each process

Returns

vectors of data received from each process

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

allToAll()

template<typename T >

virtual std::unordered_map< int, T > fpmas::api::communication::TypedMpi< T >::allToAll ( std::unordered_map< int, T >  export_map )

pure virtual

Performs a complete exchange of T instances among processor.

Follows the same rules as MpiCommunicator::allToAll().

Parameters

export_map

data to export to each process

Returns

data received from each process

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

gather()

template<typename T >

virtual std::vector< T > fpmas::api::communication::TypedMpi< T >::gather ( const T &  data, int  root  )

pure virtual

Gathers T instances at root.

Follows the same rules as MpiCommunicator::gather().

Parameters

data	data to send to root
root	rank of the root process

Returns

if rank == root, a vector containing gathered T objects, else an empty vector.

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

allGather()

template<typename T >

virtual std::vector< T > fpmas::api::communication::TypedMpi< T >::allGather ( const T &  data )

pure virtual

Gathers T instances on all processes.

Follows the same rules as MpiCommunicator::allGather().

Parameters

data	to send to all processes

Returns

data sent by all processes

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

bcast()

template<typename T >

virtual T fpmas::api::communication::TypedMpi< T >::bcast ( const T &  data, int  root  )

pure virtual

Broadcasts a T instance to all processes.

Follows the same rules as MpiCommunicator::bcast().

Parameters

data	data to broadcast
root	rank of the process from which data is sent

Returns

received data from root

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

send()

template<typename T >

virtual void fpmas::api::communication::TypedMpi< T >::send ( const T &  data, int  destination, int  tag  )

pure virtual

Sends a T instance to destination (blocking).

Follows the same rules as MpiCommunicator::send().

Parameters

data	reference to the T object to send to destination
destination	rank of the destination process
tag	message tag

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

Isend()

template<typename T >

virtual void fpmas::api::communication::TypedMpi< T >::Isend ( const T &  data, int  destination, int  tag, Request &  req  )

pure virtual

Sends a T instance to destination (non-blocking).

Follows the same rules as MpiCommunicator::Isend().

Parameters

data	reference to the T object to send to destination
destination	rank of the destination process
tag	message tag
req	output Request

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

Issend()

template<typename T >

virtual void fpmas::api::communication::TypedMpi< T >::Issend ( const T &  data, int  destination, int  tag, Request &  req  )

pure virtual

Sends a T instance to destination (non-blocking, synchronous).

Follows the same rules as MpiCommunicator::Issend().

Parameters

data	reference to the T object to send to destination
destination	rank of the destination process
tag	message tag
req	output Request

Implemented in fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< T, PackType >, and fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >.

probe()

template<typename T >

virtual void fpmas::api::communication::TypedMpi< T >::probe ( int  source, int  tag, Status &  status  )

pure virtual

Blocking probe.

Blocks until a message with the specified tag is received from source.

Upon return, the output status contains information about the size of the message to receive.

Parameters

source	source rank
tag	recv tag
status	MPI status

Implemented in fpmas::communication::detail::TypedMpi< T, PackType >, fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, and fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >.

Iprobe()

template<typename T >

virtual bool fpmas::api::communication::TypedMpi< T >::Iprobe ( int  source, int  tag, Status &  status  )

pure virtual

Non-blocking probe.

Returns true if and only if a message with the specified tag can be received from source.

Upon return, the output status contains information about the size of the message to receive.

Parameters

source	source rank
tag	recv tag
status	MPI status

Returns

true iff a message is available

Implemented in fpmas::communication::detail::TypedMpi< T, PackType >, fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, and fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >.

recv()

template<typename T >

virtual T fpmas::api::communication::TypedMpi< T >::recv ( int  source, int  tag, Status &  status = Status::IGNORE  )

pure virtual

Receives a T object from source.

Parameters

source	rank of the process to receive from
tag	message tag
status	output MPI status

Implemented in fpmas::communication::detail::TypedMpi< T, PackType >, fpmas::communication::detail::TypedMpi< T, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::graph::EdgePtrWrapper< T >, io::datapack::LightObjectPack >, fpmas::communication::detail::TypedMpi< std::set< fpmas::api::graph::DistributedId >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< DistributedId, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::NodeUpdatePack< T >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< fpmas::api::graph::DistributedEdge< T > >, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< Color, io::datapack::ObjectPack >, fpmas::communication::detail::TypedMpi< fpmas::synchro::DataUpdatePack< T >, io::datapack::ObjectPack >, and fpmas::communication::detail::TypedMpi< fpmas::api::utils::PtrWrapper< T >, io::datapack::ObjectPack >.

---

The documentation for this class was generated from the following file:

• src/fpmas/api/communication/communication.h
