#include <spatial_model.h>

Inheritance diagram for fpmas::api::model::SpatialAgent< CellType >:

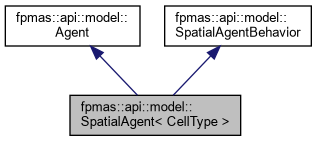

Collaboration diagram for fpmas::api::model::SpatialAgent< CellType >:

Public Types
typedef CellType	Cell

Public Member Functions
virtual DistributedId	locationId () const =0

virtual CellType *	locationCell () const =0

virtual void	initLocation (Cell *cell)=0

virtual const Range< CellType > &	mobilityRange () const =0

virtual const Range< CellType > &	perceptionRange () const =0

Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0

virtual std::vector< GroupId >	groupIds () const =0

virtual void	setGroupId (GroupId id)=0

virtual void	addGroupId (GroupId id)=0

virtual void	removeGroupId (GroupId id)=0

virtual AgentGroup *	group ()=0

virtual const AgentGroup *	group () const =0

virtual std::vector< AgentGroup * >	groups ()=0

virtual std::vector< const AgentGroup * >	groups () const =0

virtual void	setGroup (AgentGroup *group)=0

virtual void	addGroup (AgentGroup *group)=0

virtual void	removeGroup (AgentGroup *group)=0

virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0

virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0

virtual TypeId	typeId () const =0

virtual Agent *	copy () const =0

virtual void	copyAssign (Agent *agent)=0

virtual void	moveAssign (Agent *agent)=0

virtual AgentNode *	node ()=0

virtual const AgentNode *	node () const =0

virtual void	setNode (AgentNode *node)=0

virtual Model *	model ()=0

virtual const Model *	model () const =0

virtual void	setModel (Model *model)=0

virtual AgentTask *	task ()=0

virtual const AgentTask *	task () const =0

virtual void	setTask (AgentTask *task)=0

virtual AgentTask *	task (GroupId id)=0

virtual const AgentTask *	task (GroupId id) const =0

virtual void	setTask (GroupId id, AgentTask *task)=0

virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0

virtual void	act ()=0

Public Member Functions inherited from fpmas::api::model::SpatialAgentBehavior
virtual void	handleNewMove ()=0

virtual void	handleNewPerceive ()=0

Protected Member Functions
virtual void	moveTo (DistributedId id)=0

virtual void	moveTo (Cell *cell)=0

Detailed Description

template<typename CellType>
class fpmas::api::model::SpatialAgent< CellType >

SpatialAgent API.

In addition to the classical Agent properties, SpatialAgents can be located on a Cell network, move and perceive objects within it.

The mobility field of a SpatialAgent is defined as the set of outgoing neighbors of type Cell on the MOVE layer.

The perceptions of a SpatialAgent are defined as elements of the set of outgoind neighbors of type Agent on the PERCEPTION layer.

Helper functions might be defined in implementing classes to access those elements.

The specified CellType must extend Cell.

Member Typedef Documentation

◆ Cell

template<typename CellType >

typedef CellType fpmas::api::model::SpatialAgent< CellType >::Cell

Type of Cell on which the SpatialAgent is moving.

Member Function Documentation

◆ locationId()

template<typename CellType >

virtual DistributedId fpmas::api::model::SpatialAgent< CellType >::locationId ( ) const

pure virtual

Returns the id of the location Cell of this SpatialAgent.

This id can be used to easily move to the location of DISTANT perceived SpatialAgent.

For example, let's consider a SpatialAgent A, that is LOCAL. It can perceive a DISTANT agent B, located on a Cell C, that is also DISTANT. We also assume C is currently in the mobility field of A. Considering the properties of an FPMAS DistributedGraph, B is guaranteed to be represented on the current process, since it's linked to A on the PERCEPTION layer, and so does C on the MOVE layer. However, since B and C are distant, the LOCATION link from B to C is not expected to be presented on the current process, so calling B->locationCell() will produce an unexpected behavior. However, A can still move to the current location of B using the locationId() method:

A->moveTo(B->locationId());

Notice that this is valid whatever the current SynchronizationMode is. Indeed, moveTo operations are only committed at the next DistributedMoveAlgorithm execution, that includes a Graph synchronization process. So, in any case, even if B moves during its execution on an other process while A->moveTo() is executed on the current process, its new location will effectively be committed only when all SpatialAgents are synchronized, so it is still consistent to assume that, during this epoch, B is still located at B->locationId(). However, when the DistributedMoveAlgorithm will be applied, A will finally end on a different location than B.

Returns: id of the current location

Implemented in fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >, and fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >.

◆ locationCell()

template<typename CellType >

virtual CellType * fpmas::api::model::SpatialAgent< CellType >::locationCell ( ) const

pure virtual

Returns the current location of this SpatialAgent.

The location of a SpatialAgent is defined as the target of the only outgoing edge connected to this SpatialAgent on the LOCATION layer.

Contrary to locationId(), this method produces an unexpected result when called on a DISTANT SpatialAgent.

Returns: current location

Implemented in fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >, and fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >.

◆ initLocation()

template<typename CellType >

virtual void fpmas::api::model::SpatialAgent< CellType >::initLocation ( Cell * cell )

pure virtual

Initializes the location of this SpatialAgent.

Contrary to moveTo, this method is public and does not assume that old location, mobility field and perceptions must be unlinked. If the SpatialAgent location was already defined (using initLocation() or moveTo()), the behavior of this method is undefined. However, notice that the location of the SpatialAgent can also be initialized internally using a moveTo() operation.

The DistributedMoveAlgorithm must still be applied to commit the initial location, as with regular moveTo() operations.

Parameters

cell	initial location of the SpatialAgent

Implemented in fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >.

◆ mobilityRange()

template<typename CellType >

virtual const Range< CellType > & fpmas::api::model::SpatialAgent< CellType >::mobilityRange ( ) const

pure virtual

Returns the current mobility range of this SpatialAgent.

Returns: mobility range

◆ perceptionRange()

template<typename CellType >

virtual const Range< CellType > & fpmas::api::model::SpatialAgent< CellType >::perceptionRange ( ) const

pure virtual

Returns the current perception range of this SpatialAgent.

Returns: perception range

◆ moveTo() [1/2]

template<typename CellType >

virtual void fpmas::api::model::SpatialAgent< CellType >::moveTo ( DistributedId id )

protectedpure virtual

Moves to the Cell with the provided id.

If the id does not correspond to any Cell in the current mobility field, an OutOfMobilityFieldException is thrown.

If a corresponding Cell is found, the move operation is performed as described in moveTo(Cell*).

Parameters

id Cell id

Exceptions

OutOfMobilityFieldException

Implemented in fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >, and fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >.

◆ moveTo() [2/2]

template<typename CellType >

virtual void fpmas::api::model::SpatialAgent< CellType >::moveTo ( Cell * cell )

protectedpure virtual

Moves to the input Cell.

The input Cell is not required to be contained in the current mobility field of this SpatialAgent, what allows:

To initialize the location of this SpatialAgent (since in this case, the mobility field is still empty)
A SpatialAgent to move an other DISTANT SpatialAgent.

The execution of a DistributedMoveAlgorithm is required to commit the operation and update mobility fields and perceptions. However, this can be handled automatically on specific AgentGroups: see SpatialModel::buildMoveGroup().

More precisely, the current location, if defined, is unlinked, and so does the mobility field and perceptions, and a link from this SpatialAgent to cell is created on the NEW_LOCATION layer. In consequence, the behavior of locationCell() is undefined until a DistributedMoveAlgorithm is executed.

Notice that performing an other moveTo() operation before the previous is committed produces an undefined behavior.

Parameters

cell	cell to which this SpatialAgent should move.

The documentation for this class was generated from the following file:

src/fpmas/api/model/spatial/spatial_model.h
