#include <communication.h>

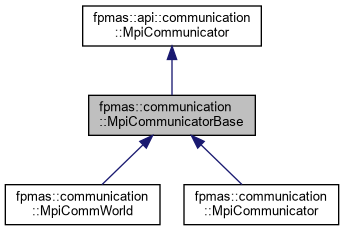

Inheritance diagram for fpmas::communication::MpiCommunicatorBase:

[legend]

Collaboration diagram for fpmas::communication::MpiCommunicatorBase:

Public Member Functions
MPI_Comm	getMpiComm () const

MPI_Group	getMpiGroup () const

int	getRank () const override

int	getSize () const override

void	send (const void *data, int count, MPI_Datatype datatype, int destination, int tag) override

void	send (const DataPack &data, MPI_Datatype datatype, int destination, int tag) override

void	send (int destination, int tag) override

void	Isend (const void *data, int count, MPI_Datatype datatype, int destination, int tag, Request &req) override

void	Isend (const DataPack &data, MPI_Datatype datatype, int destination, int tag, Request &req) override

void	Isend (int destination, int tag, Request &req) override

void	Issend (const void *data, int count, MPI_Datatype datatype, int destination, int tag, Request &req) override

void	Issend (const DataPack &data, MPI_Datatype datatype, int destination, int tag, Request &req) override

void	Issend (int destination, int tag, Request &req) override

void	recv (int source, int tag, Status &status=Status::IGNORE) override

void	recv (void *buffer, int count, MPI_Datatype datatype, int source, int tag, Status &status=Status::IGNORE) override

void	recv (DataPack &data, MPI_Datatype datatype, int source, int tag, Status &status=Status::IGNORE) override

void	probe (MPI_Datatype type, int source, int tag, Status &) override

bool	Iprobe (MPI_Datatype type, int source, int tag, Status &) override

bool	test (Request &req) override

void	wait (Request &req) override

void	waitAll (std::vector< Request > &req) override

std::unordered_map< int, DataPack >	allToAll (std::unordered_map< int, DataPack > export_map, MPI_Datatype datatype) override

std::vector< DataPack >	gather (DataPack data, MPI_Datatype datatype, int root) override

std::vector< DataPack >	allGather (DataPack data, MPI_Datatype datatype) override

DataPack	bcast (DataPack data, MPI_Datatype datatype, int root) override

void	barrier () override

virtual int	getRank () const =0

virtual int	getSize () const =0

virtual void	send (const void *data, int count, MPI_Datatype datatype, int destination, int tag)=0

virtual void	send (const DataPack &data, MPI_Datatype datatype, int destination, int tag)=0

virtual void	send (int destination, int tag)=0

virtual void	Isend (const void *data, int count, MPI_Datatype datatype, int destination, int tag, Request &request)=0

virtual void	Isend (const DataPack &data, MPI_Datatype datatype, int destination, int tag, Request &request)=0

virtual void	Isend (int destination, int tag, Request &request)=0

virtual void	Issend (const void *data, int count, MPI_Datatype datatype, int destination, int tag, Request &request)=0

virtual void	Issend (const DataPack &data, MPI_Datatype datatype, int destination, int tag, Request &request)=0

virtual void	Issend (int destination, int tag, Request &request)=0

virtual void	probe (MPI_Datatype type, int source, int tag, Status &status)=0

virtual bool	Iprobe (MPI_Datatype type, int source, int tag, Status &status)=0

virtual void	recv (int source, int tag, Status &status=Status::IGNORE)=0

virtual void	recv (void *buffer, int count, MPI_Datatype datatype, int source, int tag, Status &status)=0

virtual void	recv (DataPack &data, MPI_Datatype datatype, int source, int tag, Status &status)=0

virtual bool	test (Request &request)=0

virtual void	wait (Request &request)=0

virtual void	waitAll (std::vector< Request > &requests)=0

virtual std::unordered_map< int, DataPack >	allToAll (std::unordered_map< int, DataPack > export_map, MPI_Datatype datatype)=0

virtual std::vector< DataPack >	gather (DataPack data, MPI_Datatype datatype, int root)=0

virtual std::vector< DataPack >	allGather (DataPack data, MPI_Datatype datatype)=0

virtual DataPack	bcast (DataPack data, MPI_Datatype datatype, int root)=0

virtual void	barrier ()=0

Protected Attributes
int	size

int	rank

MPI_Group	group

MPI_Comm	comm

Additional Inherited Members
Static Public Attributes inherited from fpmas::api::communication::MpiCommunicator
static MPI_Datatype	IGNORE_TYPE = MPI_INT

Detailed Description

fpmas::api::communication::MpiCommunicator implementation, based on the system MPI library (i.e. #include <mpi.h>).

Member Function Documentation

◆ getMpiComm()

MPI_Comm fpmas::communication::MpiCommunicatorBase::getMpiComm ( ) const

Returns the built MPI communicator.

Returns: associated MPI communicator

◆ getMpiGroup()

MPI_Group fpmas::communication::MpiCommunicatorBase::getMpiGroup ( ) const

Returns the built MPI group.

Returns: associated MPI group

◆ getRank()

int fpmas::communication::MpiCommunicatorBase::getRank ( ) const

overridevirtual

Returns the MPI rank of this communicator.

Returns: MPI communicator rank

Implements fpmas::api::communication::MpiCommunicator.

◆ getSize()

int fpmas::communication::MpiCommunicatorBase::getSize ( ) const

overridevirtual

Returns the size of this communicator (i.e. the current processes count).

Returns: MPI communicator size

Implements fpmas::api::communication::MpiCommunicator.

◆ send() [1/3]

void fpmas::communication::MpiCommunicatorBase::send	(	const void *	data,
		int	count,
		MPI_Datatype	datatype,
		int	destination,
		int	tag
	)

overridevirtual

Perfoms an MPI_Send operation.

Parameters

data	input buffer
count	items count in the buffer
datatype	MPI type of the data to send
destination	rank of the destination proc
tag	message tag

Implements fpmas::api::communication::MpiCommunicator.

◆ send() [2/3]

void fpmas::communication::MpiCommunicatorBase::send	(	const DataPack &	data,
		MPI_Datatype	datatype,
		int	destination,
		int	tag
	)

overridevirtual

Equivalent to send(data.buffer, data.count, datatype, destination, tag)

Parameters

data	input DataPack
datatype	MPI type of the data to send
destination	rank of the destination process
tag	message tag

Implements fpmas::api::communication::MpiCommunicator.

◆ send() [3/3]

void fpmas::communication::MpiCommunicatorBase::send	(	int	destination,
		int	tag
	)

overridevirtual

Performs an MPI_Send operation without data.

Parameters

destination	rank of the destination proc
tag	message tag

Implements fpmas::api::communication::MpiCommunicator.

◆ Isend() [1/3]

void fpmas::communication::MpiCommunicatorBase::Isend	(	const void *	data,
		int	count,
		MPI_Datatype	datatype,
		int	destination,
		int	tag,
		Request &	request
	)

overridevirtual

Sends data to destination (non-blocking, asynchronous).

The FPMAS implementation always copy the input data to the input Request.

The method returns immediately, without waiting for the message to be buffered or received by the destination process.

The operation must be completed with wait() or waitAll() so that the request object is properly freed.

Parameters

data	input buffer
count	items count in the buffer
datatype	MPI type of the data to send
destination	rank of the destination process
tag	message tag
request	output Request

Implements fpmas::api::communication::MpiCommunicator.

◆ Isend() [2/3]

void fpmas::communication::MpiCommunicatorBase::Isend	(	const DataPack &	data,
		MPI_Datatype	datatype,
		int	destination,
		int	tag,
		Request &	request
	)

overridevirtual

Equivalent to send(data.buffer, data.count, datatype, destination, tag, request)

Parameters

data	input DataPack
datatype	MPI type of the data to send
destination	rank of the destination process
tag	message tag
request	output Request

Implements fpmas::api::communication::MpiCommunicator.

◆ Isend() [3/3]

void fpmas::communication::MpiCommunicatorBase::Isend	(	int	destination,
		int	tag,
		Request &	request
	)

overridevirtual

Sends a void message to destination (non-blocking, asynchronous).

This might be useful to send END message for example, when only a message tag without body might be enough.

Parameters

destination	rank of the destination process
tag	message tag
request	output Request

Implements fpmas::api::communication::MpiCommunicator.

◆ Issend() [1/3]

void fpmas::communication::MpiCommunicatorBase::Issend	(	const void *	data,
		int	count,
		MPI_Datatype	datatype,
		int	destination,
		int	tag,
		Request &	req
	)

overridevirtual

Performs an MPI_Issend operation.

Parameters

data	input buffer
count	items count in the buffer
datatype	MPI type of the data to send
destination	rank of the destination proc
tag	message tag
req	output MPI request

Implements fpmas::api::communication::MpiCommunicator.

◆ Issend() [2/3]

void fpmas::communication::MpiCommunicatorBase::Issend	(	const DataPack &	data,
		MPI_Datatype	datatype,
		int	destination,
		int	tag,
		Request &	request
	)

overridevirtual

Equivalent to Issend(data.buffer, data.count, datatype, destination, tag, request).

Parameters

data	input DataPack
datatype	MPI type of the data to send
destination	rank of the destination process
tag	message tag
request	output Request

Implements fpmas::api::communication::MpiCommunicator.

◆ Issend() [3/3]

void fpmas::communication::MpiCommunicatorBase::Issend	(	int	destination,
		int	tag,
		Request &	req
	)

overridevirtual

Performs an MPI_Issend operation without data.

Parameters

destination	rank of the destination proc
tag	message tag
req	output MPI request

Implements fpmas::api::communication::MpiCommunicator.

◆ recv() [1/3]

void fpmas::communication::MpiCommunicatorBase::recv	(	int	source,
		int	tag,
		Status &	status = `Status::IGNORE`
	)

overridevirtual

Performs an MPI_Recv operation without data.

Parameters

source	rank of the process to receive from
tag	message tag
status	output MPI status

Implements fpmas::api::communication::MpiCommunicator.

◆ recv() [2/3]

void fpmas::communication::MpiCommunicatorBase::recv	(	void *	buffer,
		int	count,
		MPI_Datatype	datatype,
		int	source,
		int	tag,
		Status &	status = `Status::IGNORE`
	)

overridevirtual

Performs an MPI_Recv operation.

Parameters

buffer	output buffer
count	items count to receive
datatype	MPI type of the data to receive
source	rank of the proc to receive from
tag	message tag
status	output MPI status

Implements fpmas::api::communication::MpiCommunicator.

◆ recv() [3/3]

void fpmas::communication::MpiCommunicatorBase::recv	(	DataPack &	data,
		MPI_Datatype	datatype,
		int	source,
		int	tag,
		Status &	status = `Status::IGNORE`
	)

overridevirtual

Equivalent to recv(data.buffer, data.count, datatype, source, tag, status)

Parameters

data	output DataPack
datatype	MPI type of the data to receive
source	rank of the process to receive from
tag	message tag
status	output MPI status

Implements fpmas::api::communication::MpiCommunicator.

◆ probe()

void fpmas::communication::MpiCommunicatorBase::probe	(	MPI_Datatype	type,
		int	source,
		int	tag,
		Status &	status
	)

overridevirtual

Performs an MPI_Probe operation.

Upon return, the output status contains information about the message to receive.

Parameters

type	expected message type
source	source rank
tag	recv tag
status	MPI status

Implements fpmas::api::communication::MpiCommunicator.

◆ Iprobe()

bool fpmas::communication::MpiCommunicatorBase::Iprobe	(	MPI_Datatype	type,
		int	source,
		int	tag,
		Status &	status
	)

overridevirtual

Performs an MPI_Iprobe operation.

Upon return, the output status contains information about the message to receive.

Parameters

type	expected message type
source	source rank
tag	recv tag
status	MPI status

Returns: true iff a message is available

Implements fpmas::api::communication::MpiCommunicator.

◆ test()

bool fpmas::communication::MpiCommunicatorBase::test ( Request & req )

overridevirtual

Performs an MPI_Test operation.

Parameters

req	MPI request to test

Returns: true iff the request is complete

Implements fpmas::api::communication::MpiCommunicator.

◆ wait()

void fpmas::communication::MpiCommunicatorBase::wait ( Request & req )

overridevirtual

Performs an MPI_Wait operation.

Parameters

req	Request to wait for completion

Implements fpmas::api::communication::MpiCommunicator.

◆ waitAll()

void fpmas::communication::MpiCommunicatorBase::waitAll ( std::vector< Request > & requests )

overridevirtual

Waits for the completion of all requests.

Can be used to complete non-blocking communications. Upon return, all requests internal data buffers are freed.

Parameters

requests Requests to wait

Implements fpmas::api::communication::MpiCommunicator.

◆ allToAll()

std::unordered_map< int, DataPack > fpmas::communication::MpiCommunicatorBase::allToAll	(	std::unordered_map< int, DataPack >	export_map,
		MPI_Datatype	datatype
	)

overridevirtual

Performs an MPI_Alltoall operation.

Parameters

export_map	data to export to each proc
datatype	MPI datatype of the data to send / receive

Returns: data received from each proc

Implements fpmas::api::communication::MpiCommunicator.

◆ gather()

std::vector< DataPack > fpmas::communication::MpiCommunicatorBase::gather	(	DataPack	data,
		MPI_Datatype	datatype,
		int	root
	)

overridevirtual

Performs an MPI_Gather operation.

Parameters

data	data to send to root
datatype	MPI datatype
root	rank of the root process

Returns: if rank == root, a vector containing gathered data, else an empty vector.

Implements fpmas::api::communication::MpiCommunicator.

◆ allGather()

std::vector< DataPack > fpmas::communication::MpiCommunicatorBase::allGather	(	DataPack	data,
		MPI_Datatype	datatype
	)

overridevirtual

Performs an MPI_Allgather operation.

Parameters

data	to send to all processes
datatype	MPI datatype

Returns: data sent by all processes

Implements fpmas::api::communication::MpiCommunicator.

◆ bcast()

DataPack fpmas::communication::MpiCommunicatorBase::bcast	(	DataPack	data,
		MPI_Datatype	datatype,
		int	root
	)

overridevirtual

Performs an MPI_Bcast operation.

Parameters

data	data to broadcast
datatype	MPI datatype
root	rank of the process from which data is sent

Returns: received data from root

Implements fpmas::api::communication::MpiCommunicator.

◆ barrier()

void fpmas::communication::MpiCommunicatorBase::barrier ( )

overridevirtual

Performs an MPI_Barrier operation.

Implements fpmas::api::communication::MpiCommunicator.

Member Data Documentation

◆ size

int fpmas::communication::MpiCommunicatorBase::size

protected

Communicator size

◆ rank

int fpmas::communication::MpiCommunicatorBase::rank

protected

Communicator rank

◆ group

MPI_Group fpmas::communication::MpiCommunicatorBase::group

protected

Internal MPI_Group

◆ comm

MPI_Comm fpmas::communication::MpiCommunicatorBase::comm

protected

Internal MPI_Comm

The documentation for this class was generated from the following files:

src/fpmas/communication/communication.h
src/fpmas/communication/communication.cpp

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getMpiComm()

◆ getMpiGroup()

◆ getRank()

◆ getSize()

◆ send() [1/3]

◆ send() [2/3]

◆ send() [3/3]

◆ Isend() [1/3]

◆ Isend() [2/3]

◆ Isend() [3/3]

◆ Issend() [1/3]

◆ Issend() [2/3]

◆ Issend() [3/3]

◆ recv() [1/3]

◆ recv() [2/3]

◆ recv() [3/3]

◆ probe()

◆ Iprobe()

◆ test()

◆ wait()

◆ waitAll()

◆ allToAll()

◆ gather()

◆ allGather()

◆ bcast()

◆ barrier()

Member Data Documentation

◆ size

◆ rank

◆ group

◆ comm
