fpmas::graph::BipartiteGraphBuilder< T > Class Template Reference

#include <graph_builder.h>

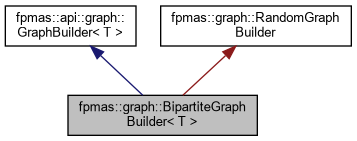

Inheritance diagram for fpmas::graph::BipartiteGraphBuilder< T >:

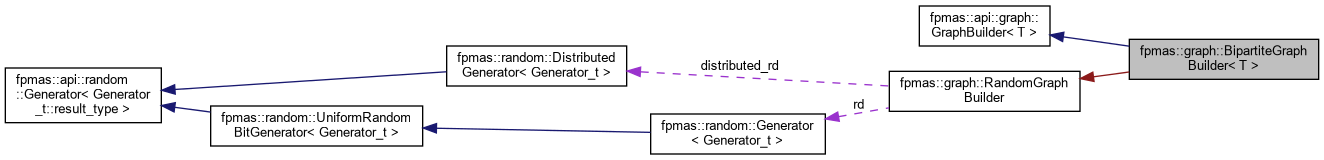

Collaboration diagram for fpmas::graph::BipartiteGraphBuilder< T >:

Public Member Functions
template<typename Generator_t , typename EdgeDist >
	BipartiteGraphBuilder (Generator_t &generator, EdgeDist &edge_distribution, std::vector< api::graph::DistributedNode< T > * > base_nodes)
std::vector< api::graph::DistributedNode< T > * >	build (api::graph::NodeBuilder< T > &node_builder, api::graph::LayerId layer, api::graph::DistributedGraph< T > &graph) override
virtual std::vector< api::graph::DistributedNode< T > * >	build (NodeBuilder< T > &node_builder, LayerId layer, DistributedGraph< T > &graph)=0

Detailed Description

template<typename T>
class fpmas::graph::BipartiteGraphBuilder< T >

api::graph::GraphBuilder implementation used to generate bipartite graphs. Built nodes are linked to nodes specified as "base nodes".

Constructor & Destructor Documentation

BipartiteGraphBuilder()

template<typename T >

template<typename Generator_t , typename EdgeDist >

fpmas::graph::BipartiteGraphBuilder< T >::BipartiteGraphBuilder ( Generator_t &  generator, EdgeDist &  edge_distribution, std::vector< api::graph::DistributedNode< T > * >  base_nodes  )

inline

BipartiteGraphBuilder constructor.

Template Parameters

Generator_t	random generator type (must satisfy UniformRandomBitGenerator)
EdgeDist	edge count distribution (must satisfy RandomNumberDistribution)

Parameters

generator	random number generator provided to the distribution
edge_distribution	random distribution that manages edges generation. See build()
base_nodes	nodes to which built nodes will be linked

Member Function Documentation

build()

template<typename T >

std::vector< api::graph::DistributedNode< T > * > fpmas::graph::BipartiteGraphBuilder< T >::build ( api::graph::NodeBuilder< T > &  node_builder, api::graph::LayerId  layer, api::graph::DistributedGraph< T > &  graph  )

overridevirtual

For each built node, an outgoing edge count n is determined by edge_distribution.

Each node is then connected to a set of n nodes randomly and uniformly selected from the base_nodes set. If base_nodes.size() < n, the node is only connected to all the nodes of base_nodes.

Parameters

node_builder	NodeBuilder instance used to generate nodes
layer	layer on which nodes will be linked
graph	graph in which nodes and edges will be inserted

Implements fpmas::api::graph::GraphBuilder< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/graph/graph_builder.h
