fpmas::graph::ClusteredGraphBuilder< T > Class Template Reference

#include <clustered_graph_builder.h>

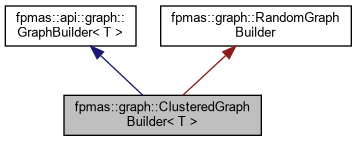

Inheritance diagram for fpmas::graph::ClusteredGraphBuilder< T >:

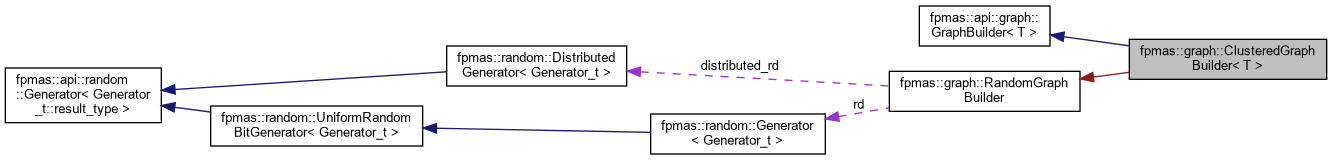

Collaboration diagram for fpmas::graph::ClusteredGraphBuilder< T >:

Public Member Functions
template<typename Generator_t , typename EdgeDist , typename X_Dist , typename Y_Dist >
	ClusteredGraphBuilder (Generator_t &generator, EdgeDist &edge_distribution, X_Dist &x_distribution, Y_Dist &y_distribution)
template<typename EdgeDist , typename X_Dist , typename Y_Dist >
	ClusteredGraphBuilder (EdgeDist &edge_distribution, X_Dist &x_distribution, Y_Dist &y_distribution)
template<typename Generator_t , typename Distribution_t >
	ClusteredGraphBuilder (Generator_t &generator, Distribution_t &edge_distribution)
std::vector< api::graph::DistributedNode< T > * >	build (api::graph::NodeBuilder< T > &node_builder, api::graph::LayerId layer, api::graph::DistributedGraph< T > &graph) override
virtual std::vector< api::graph::DistributedNode< T > * >	build (NodeBuilder< T > &node_builder, LayerId layer, DistributedGraph< T > &graph)=0

Detailed Description

template<typename T>
class fpmas::graph::ClusteredGraphBuilder< T >

api::graph::GraphBuilder implementation that can be used to generate random clustered graphs. A random 2D coordinate is implicitly associated to each node : each node is then connected to its nearest neighbors.

Constructor & Destructor Documentation

ClusteredGraphBuilder() [1/3]

template<typename T >

template<typename Generator_t , typename EdgeDist , typename X_Dist , typename Y_Dist >

fpmas::graph::ClusteredGraphBuilder< T >::ClusteredGraphBuilder ( Generator_t &  generator, EdgeDist &  edge_distribution, X_Dist &  x_distribution, Y_Dist &  y_distribution  )

inline

ClusteredGraphBuilder constructor.

Template Parameters

Generator_t	random generator type (must satisfy UniformRandomBitGenerator)
EdgeDist	edge count distribution (must satisfy RandomNumberDistribution)
X_Dist	x coordinates distribution (must satisfy RandomNumberDistribution)
Y_Dist	y coordinates distribution (must satisfy RandomNumberDistribution)

Parameters

generator	random number generator provided to the distribution
edge_distribution	random distribution that manages edges generation. See build()
x_distribution	random distribution used to assign an x coordinate to each node
y_distribution	random distribution used to assign an y coordinate to each node

ClusteredGraphBuilder() [2/3]

template<typename T >

template<typename EdgeDist , typename X_Dist , typename Y_Dist >

fpmas::graph::ClusteredGraphBuilder< T >::ClusteredGraphBuilder ( EdgeDist &  edge_distribution, X_Dist &  x_distribution, Y_Dist &  y_distribution  )

inline

ClusteredGraphBuilder constructor.

The RandomGraphBuilder::rd random generator is used. It can be seeded with RandomGraphBuilder::seed() or fpmas::seed().

Template Parameters

EdgeDist	edge count distribution (must satisfy RandomNumberDistribution)
X_Dist	x coordinates distribution (must satisfy RandomNumberDistribution)
Y_Dist	y coordinates distribution (must satisfy RandomNumberDistribution)

Parameters

edge_distribution	random distribution that manages edges generation. See build()
x_distribution	random distribution used to assign an x coordinate to each node
y_distribution	random distribution used to assign an y coordinate to each node

ClusteredGraphBuilder() [3/3]

template<typename T >

template<typename Generator_t , typename Distribution_t >

fpmas::graph::ClusteredGraphBuilder< T >::ClusteredGraphBuilder ( Generator_t &  generator, Distribution_t &  edge_distribution  )

inline

ClusteredGraphBuilder constructor.

Built nodes are implicitly and uniformly distributed in a 2D space.

Template Parameters

Generator_t	random generator type (must satisfy UniformRandomBitGenerator)
EdgeDist	edge count distribution (must satisfy RandomNumberDistribution)

Parameters

generator	random number generator provided to the distribution
edge_distribution	random distribution that manages edges generation. See build()

Member Function Documentation

build()

template<typename T >

std::vector< api::graph::DistributedNode< T > * > fpmas::graph::ClusteredGraphBuilder< T >::build ( api::graph::NodeBuilder< T > &  node_builder, api::graph::LayerId  layer, api::graph::DistributedGraph< T > &  graph  )

overridevirtual

A 2D coordinate is first assigned to each node provided by the node_builder, according to the specified x_distribution and y_distribution.

Then, for each node, an outgoing edge count n is determined by edge_distribution. The node is then connected to its n nearest neighbors according to the previously computed coordinates.

Notice that those coordinates are completely implicit and independent from the kind of nodes actually built by the algorithm.

Parameters

node_builder	NodeBuilder instance used to generate nodes
layer	layer on which nodes will be linked
graph	graph in which nodes and edges will be inserted

Implements fpmas::api::graph::GraphBuilder< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/graph/clustered_graph_builder.h
