fpmas::graph::DistributedEdge< T > Class Template Reference

#include <distributed_edge.h>

Inheritance diagram for fpmas::graph::DistributedEdge< T >:

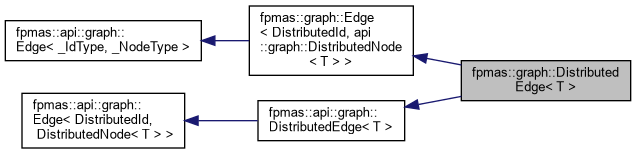

Collaboration diagram for fpmas::graph::DistributedEdge< T >:

Public Member Functions
	DistributedEdge (DistributedId id, LayerId layer)
api::graph::LocationState	state () const override
void	setState (api::graph::LocationState state) override
void	setTempSourceNode (std::unique_ptr< api::graph::TemporaryNode< T > > temp_src) override
std::unique_ptr< api::graph::TemporaryNode< T > >	getTempSourceNode () override
void	setTempTargetNode (std::unique_ptr< api::graph::TemporaryNode< T > > temp_tgt) override
std::unique_ptr< api::graph::TemporaryNode< T > >	getTempTargetNode () override
virtual IdType	getId () const =0
virtual LayerId	getLayer () const =0
virtual void	setLayer (LayerId layer)=0
virtual float	getWeight () const =0
virtual void	setWeight (float weight)=0
virtual void	setSourceNode (NodeType *const src)=0
virtual NodeType *	getSourceNode () const =0
virtual void	setTargetNode (NodeType *const tgt)=0
virtual NodeType *	getTargetNode () const =0
Public Member Functions inherited from fpmas::api::graph::DistributedEdge< T >
virtual LocationState	state () const =0
virtual void	setState (LocationState state)=0
virtual void	setTempSourceNode (std::unique_ptr< api::graph::TemporaryNode< T > > temp_src)=0
virtual std::unique_ptr< TemporaryNode< T > >	getTempSourceNode ()=0
virtual void	setTempTargetNode (std::unique_ptr< api::graph::TemporaryNode< T > > temp_tgt)=0
virtual std::unique_ptr< TemporaryNode< T > >	getTempTargetNode ()=0
Public Member Functions inherited from fpmas::api::graph::Edge< DistributedId, DistributedNode< T > >
virtual IdType	getId () const=0
virtual LayerId	getLayer () const=0
virtual void	setLayer (LayerId layer)=0
virtual float	getWeight () const=0
virtual void	setWeight (float weight)=0
virtual void	setSourceNode (NodeType *const src)=0
virtual NodeType *	getSourceNode () const=0
virtual void	setTargetNode (NodeType *const tgt)=0
virtual NodeType *	getTargetNode () const=0

Additional Inherited Members
Public Types inherited from fpmas::api::graph::Edge< _IdType, _NodeType >
typedef _IdType	IdType
typedef _NodeType	NodeType
Public Types inherited from fpmas::api::graph::Edge< DistributedId, DistributedNode< T > >
typedef DistributedId	IdType
typedef DistributedNode< T >	NodeType

Detailed Description

template<typename T>
class fpmas::graph::DistributedEdge< T >

api::graph::DistributedEdge implementation.

Constructor & Destructor Documentation

DistributedEdge()

template<typename T >

fpmas::graph::DistributedEdge< T >::DistributedEdge ( DistributedId  id, LayerId  layer  )

inline

DistributedEdge constructor.

Parameters

id	edge id
layer	id of the layer on which the edge is located

Member Function Documentation

state()

template<typename T >

api::graph::LocationState fpmas::graph::DistributedEdge< T >::state ( ) const

inlineoverridevirtual

Current state of the edge.

A DistributedEdge is LOCAL iff its source and target nodes are LOCAL.

Returns

current edge state

Implements fpmas::api::graph::DistributedEdge< T >.

setState()

template<typename T >

void fpmas::graph::DistributedEdge< T >::setState ( api::graph::LocationState  state )

inlineoverridevirtual

Updates the state of the edge.

Only intended for internal / serialization usage.

Parameters

state

new state

Implements fpmas::api::graph::DistributedEdge< T >.

setTempSourceNode()

template<typename T >

void fpmas::graph::DistributedEdge< T >::setTempSourceNode ( std::unique_ptr< api::graph::TemporaryNode< T > >  temp_src )

inlineoverride

Sets the temporary source node of this DistributedEdge.

The temp_src unique_ptr is moved internally so that the current DistributedEdge instance takes ownership of it.

This unique_ptr instance can be retrieve from getTempSourceNode().

Parameters

temp_src

pointer to temporary source node

getTempSourceNode()

template<typename T >

std::unique_ptr< api::graph::TemporaryNode< T > > fpmas::graph::DistributedEdge< T >::getTempSourceNode ( )

inlineoverridevirtual

Gets the current temporary source node attached to this DistributedEdge.

The caller takes ownership of the unique_ptr, leaving the current temporary source node in a null state.

Warning

Ownership of temporary nodes should be manages carefully. Indeed, the following example would produce a segmentation fault, since the unique_ptr would be deleted at the first getTempSourceNode() call:

auto id = edge->getTempSourceNode()->getId();
auto edge = edge->getTempSourceNode()->build();

However, the following is valid:

// Takes ownership of the temporary node
{
    auto temp_node = edge->getTempSourceNode();
    auto id = temp_node->getId();
    auto node = temp_node->build();
    // temp_node automatically deleted at the end of the scope
}

Returns

current temporary source node. Might be null.

Implements fpmas::api::graph::DistributedEdge< T >.

setTempTargetNode()

template<typename T >

void fpmas::graph::DistributedEdge< T >::setTempTargetNode ( std::unique_ptr< api::graph::TemporaryNode< T > >  temp_tgt )

inlineoverride

Sets the temporary target node of this DistributedEdge.

The temp_tgt unique_ptr is moved internally so that the current DistributedEdge instance takes ownership of it.

This unique_ptr instance can be retrieve from getTempTargetNode().

Parameters

temp_tgt

pointer to temporary target node

getTempTargetNode()

template<typename T >

std::unique_ptr< api::graph::TemporaryNode< T > > fpmas::graph::DistributedEdge< T >::getTempTargetNode ( )

inlineoverridevirtual

Gets the current temporary target node attached to this DistributedEdge.

The caller takes ownership of the unique_ptr, leaving the current temporary target node in a null state.

Warning

See getTempSourceNode().

Returns

current temporary target node. Might be null.

Implements fpmas::api::graph::DistributedEdge< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/graph/distributed_edge.h
