fpmas::graph::UniformGraphBuilder< T > Class Template Reference

#include <uniform_graph_builder.h>

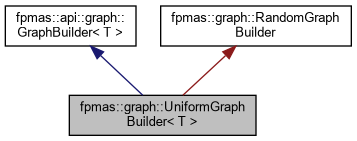

Inheritance diagram for fpmas::graph::UniformGraphBuilder< T >:

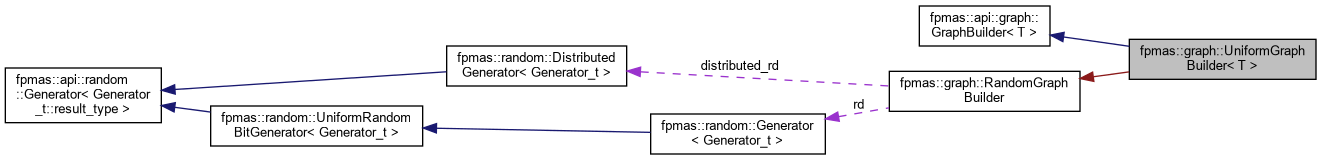

Collaboration diagram for fpmas::graph::UniformGraphBuilder< T >:

Public Member Functions
template<typename Generator_t , typename EdgeDist >
	UniformGraphBuilder (Generator_t &generator, EdgeDist &distribution)
template<typename EdgeDist >
	UniformGraphBuilder (EdgeDist &distribution)
std::vector< api::graph::DistributedNode< T > * >	build (api::graph::NodeBuilder< T > &node_builder, api::graph::LayerId layer, api::graph::DistributedGraph< T > &graph) override
virtual std::vector< api::graph::DistributedNode< T > * >	build (NodeBuilder< T > &node_builder, LayerId layer, DistributedGraph< T > &graph)=0

Detailed Description

template<typename T>
class fpmas::graph::UniformGraphBuilder< T >

api::graph::GraphBuilder implementation that can be used to generate random uniform graphs. When links are built, nodes are selected uniformly among all the available built nodes.

Constructor & Destructor Documentation

UniformGraphBuilder() [1/2]

template<typename T >

template<typename Generator_t , typename EdgeDist >

fpmas::graph::UniformGraphBuilder< T >::UniformGraphBuilder ( Generator_t &  generator, EdgeDist &  distribution  )

inline

UniformGraphBuilder constructor.

Template Parameters

Generator_t	random generator type (must satisfy UniformRandomBitGenerator)
EdgeDist	edge count distribution (must satisfy RandomNumberDistribution)

Parameters

generator	random number generator provided to the distribution
distribution	random distribution that manages edges generation. See build()

UniformGraphBuilder() [2/2]

template<typename T >

template<typename EdgeDist >

fpmas::graph::UniformGraphBuilder< T >::UniformGraphBuilder ( EdgeDist &  distribution )

inline

UniformGraphBuilder constructor.

The RandomGraphBuilder::rd random generator is used. It can be seeded with RandomGraphBuilder::seed() or fpmas::seed().

Template Parameters

EdgeDist

edge count distribution (must satisfy RandomNumberDistribution)

Parameters

distribution

random distribution that manages edges generation. See build()

Member Function Documentation

build()

template<typename T >

std::vector< api::graph::DistributedNode< T > * > fpmas::graph::UniformGraphBuilder< T >::build ( api::graph::NodeBuilder< T > &  node_builder, api::graph::LayerId  layer, api::graph::DistributedGraph< T > &  graph  )

overridevirtual

Builds a graph according to the following algorithm.

1. api::graph::NodeBuilder::nodeCount() are built in the graph.
2. The number of outgoing edge of each node is determined by the value returned by distribution(generator).
3. For each node, a subset of nodes among the nodes built by the algorithm is selected uniformly, of size equal to the previously computed output degree of the node. The node is then linked to each node of the subset, on the specified layer.

Any random distribution can be used to build such a graph. The mean output degree of the graph, K, will by definition be equal to the mean of the specified random distribution.

Parameters

node_builder	NodeBuilder instance used to generate nodes
layer	layer on which nodes will be linked
graph	graph in which nodes and edges will be inserted

Returns

built nodes

Implements fpmas::api::graph::GraphBuilder< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/graph/uniform_graph_builder.h
