fpmas::model::DistributedAgentNodeBuilder Class Reference

#include <model.h>

Inheritance diagram for fpmas::model::DistributedAgentNodeBuilder:

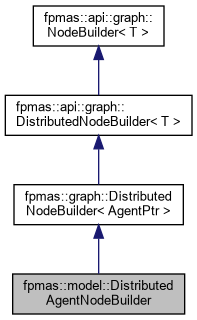

Collaboration diagram for fpmas::model::DistributedAgentNodeBuilder:

Public Member Functions
	DistributedAgentNodeBuilder (const api::model::GroupList &groups, std::size_t agent_count, std::function< api::model::Agent *()> allocator, api::communication::MpiCommunicator &comm)
	DistributedAgentNodeBuilder (const api::model::GroupList &groups, std::size_t agent_count, std::function< api::model::Agent *()> allocator, std::function< api::model::Agent *()> distant_allocator, api::communication::MpiCommunicator &comm)
api::model::AgentNode *	buildNode (api::graph::DistributedGraph< AgentPtr > &graph) override
api::model::AgentNode *	buildDistantNode (api::graph::DistributedId id, int location, api::graph::DistributedGraph< AgentPtr > &graph) override
Public Member Functions inherited from fpmas::graph::DistributedNodeBuilder< AgentPtr >
	DistributedNodeBuilder (std::size_t node_count, fpmas::api::communication::MpiCommunicator &comm)
std::size_t	nodeCount () override
std::size_t	localNodeCount () override
Public Member Functions inherited from fpmas::api::graph::DistributedNodeBuilder< T >
virtual std::size_t	localNodeCount ()=0
virtual DistributedNode< T > *	buildDistantNode (DistributedId id, int location, DistributedGraph< T > &graph)=0
Public Member Functions inherited from fpmas::api::graph::NodeBuilder< T >
virtual std::size_t	nodeCount ()=0
virtual DistributedNode< T > *	buildNode (DistributedGraph< T > &graph)=0

Additional Inherited Members
Protected Attributes inherited from fpmas::graph::DistributedNodeBuilder< AgentPtr >
std::size_t	local_node_count

Detailed Description

An api::graph::DistributedNodeBuilder implementation that can be used to easily generate a random model, that can be provided to an api::graph::DistributedGraphBuilder implementation.

AgentNodes are built automatically, and can be linked according to the api::graph::DistributedGraphBuilder algorithm implementation.

Constructor & Destructor Documentation

DistributedAgentNodeBuilder() [1/2]

fpmas::model::DistributedAgentNodeBuilder::DistributedAgentNodeBuilder	(	const api::model::GroupList &	groups,
		std::size_t	agent_count,
		std::function< api::model::Agent *()>	allocator,
		api::communication::MpiCommunicator &	comm
	)

DistributedAgentNodeBuilder constructor.

allocator is a function object used to dynamically allocate Agents. When this version of the constructor is used, the allocator is used by both buildNode() and buildDistantNode() methods. A lambda function can be used to easily define an allocator.

example

...
// Vector containing 1000 integers
std::vector<int> some_agent_data(1000);
// Initializes some_agent_data
...
int index = 0;
DistributedAgentNodeBuilder builder(
    user_group, 1000,
    [&index] () {
        return new UserAgent(some_agent_data[index++]);
        },
    model.getMpiCommunicator()
    );

Note

Notice that the build process defined in an fpmas::api::graph::DistributedGraphBuilder implementation is distributed. In consequence, the inialization of some_agent_data should in practice take distribution into account. For example, since 1000 is the total count of initialized Agents, it is very likely that much less Agents will be effectively initialized on the local process.

Parameters

groups	groups to which agents will be added
agent_count	total count of Agents to build
allocator	Agent allocator
comm	MPI communicator

DistributedAgentNodeBuilder() [2/2]

fpmas::model::DistributedAgentNodeBuilder::DistributedAgentNodeBuilder	(	const api::model::GroupList &	groups,
		std::size_t	agent_count,
		std::function< api::model::Agent *()>	allocator,
		std::function< api::model::Agent *()>	distant_allocator,
		api::communication::MpiCommunicator &	comm
	)

DistributedAgentNodeBuilder constructor.

allocator and distant_allocator are function object used to dynamically allocate Agents. When this version of the constructor is used, allocator is used by buildNode(), and distant_allocator is used by buildDistantNode(). Since buildDistantNode() is used to build temporary representations of Agents, distant_allocator can be used to efficiently allocated default constructed Agents. Lambda functions can be used to easily define an allocators.

example

...
// Vector containing 1000 integers
std::vector<int> some_agent_data(1000);
// Initializes some_agent_data
...
int index = 0;
DistributedAgentNodeBuilder builder(
    user_group, 1000,
    [&index] () {
        // Allocates a local agent with data
        return new UserAgent(some_agent_data[index++]);
        },
    [] () {
        // Allocates a default temporary agent
        return new UserAgent;
        },
    model.getMpiCommunicator()
    );

Note

Same note as DistributedAgentNodeBuilder(fpmas::api::model::AgentGroup&, std::size_t, std::function<api::model::Agent*()>, fpmas::api::communication::MpiCommunicator&)

Parameters

groups	groups to which agents will be added
agent_count	total count of Agents to build
allocator	Agent allocator
distant_allocator	temporary Agent allocator
comm	MPI communicator

Member Function Documentation

buildNode()

api::model::AgentNode * fpmas::model::DistributedAgentNodeBuilder::buildNode ( api::graph::DistributedGraph< AgentPtr > &  graph )

override

Builds a node in the specified graph.

Parameters

graph

graph in which the node must be built

Returns

pointer to built node

buildDistantNode()

api::model::AgentNode * fpmas::model::DistributedAgentNodeBuilder::buildDistantNode ( api::graph::DistributedId  id, int  location, api::graph::DistributedGraph< AgentPtr > &  graph  )

override

Builds a distant node in the specified graph, with the provided id. The node is assumed to be currently owned by the process with rank location.

Such a node can be considered as a "temporary" node, that can be used by the underlying algorithm to build edges with nodes that are currently not located on this process.

Implementations are likely to behave as follow:

1. Dynamically allocates a default DistributedNode
2. Initiates its location using DistributedNode::setLocation()
3. Inserts it into the graph using DistributedGraph::insertDistant()

Note

The node returned must be the node effectively contained in the graph at the end of the operation. Indeed, it is allowed to try to insert a DISTANT node already contained in the graph, and implementations might decide to ignore the new node or to replace the existing one, but the node finally contained in the graph must be returned. In any case, it is safe to return the result of DistributedGraph::insertDistant().

Notice that the count of nodes built using this method is not limited and is not correlated to localNodeCount() or nodeCount(), contrary to the buildNode() method.

Parameters

id	id of the distant node
location	current node location
graph	graph in which the distant node will be inserted

---

The documentation for this class was generated from the following files:

• src/fpmas/model/model.h
• src/fpmas/model/model.cpp
