#include <graph.h>

Inheritance diagram for fpmas::model::GraphCellBase< GraphCellType, Derived >:

[legend]

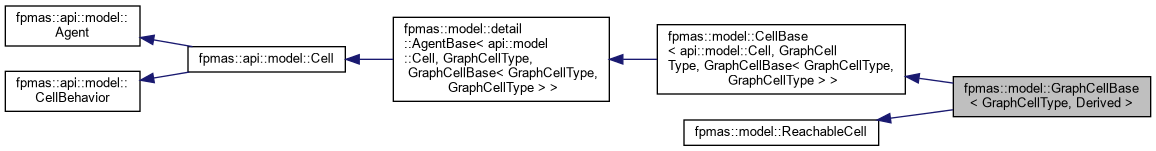

Collaboration diagram for fpmas::model::GraphCellBase< GraphCellType, Derived >:

[legend]

Public Types
typedef GraphCellBase< GraphCellType, Derived >	JsonBase

Public Types inherited from fpmas::model::detail::AgentBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > >
typedef GraphCellType	FinalAgentType

Additional Inherited Members
Public Member Functions inherited from fpmas::model::CellBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > >
	CellBase ()=default

	CellBase (const CellBase &)=default

	CellBase (CellBase &&)=default

CellBase &	operator= (const CellBase &)=default

CellBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > > &	operator= (CellBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > > &&)

std::vector< api::model::Cell * >	successors () override

void	handleNewLocation () override

void	handleMove () override

void	handlePerceive () override

void	updatePerceptions (api::model::AgentGroup &group) override

void	init () override

Public Member Functions inherited from fpmas::model::detail::AgentBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > >
	AgentBase ()=default

	AgentBase (const AgentBase &agent)=default

	AgentBase (AgentBase &&)=default

AgentBase &	operator= (const AgentBase &agent)=default

AgentBase &	operator= (AgentBase &&)

GroupId	groupId () const override

std::vector< GroupId >	groupIds () const override

void	setGroupId (api::model::GroupId id) override

void	addGroupId (api::model::GroupId id) override

void	removeGroupId (api::model::GroupId id) override

api::model::AgentGroup *	group () override

const api::model::AgentGroup *	group () const override

std::vector< const api::model::AgentGroup * >	groups () const override

std::vector< api::model::AgentGroup * >	groups () override

void	setGroup (api::model::AgentGroup *group) override

void	addGroup (api::model::AgentGroup *group) override

void	removeGroup (api::model::AgentGroup *group) override

void	setGroupPos (api::model::GroupId gid, std::list< api::model::Agent * >::iterator pos) override

std::list< api::model::Agent * >::iterator	getGroupPos (api::model::GroupId gid) const override

api::model::TypeId	typeId () const override

api::model::Agent *	copy () const override

void	copyAssign (api::model::Agent *agent) override

void	moveAssign (api::model::Agent *agent) override

api::model::AgentNode *	node () override

const api::model::AgentNode *	node () const override

void	setNode (api::model::AgentNode *node) override

api::model::Model *	model () override

const api::model::Model *	model () const override

void	setModel (api::model::Model *model) override

api::model::AgentTask *	task () override

const api::model::AgentTask *	task () const override

api::model::AgentTask *	task (api::model::GroupId id) override

const api::model::AgentTask *	task (api::model::GroupId id) const override

void	setTask (api::model::AgentTask *task) override

void	setTask (api::model::GroupId id, api::model::AgentTask *task) override

const std::unordered_map< api::model::GroupId, api::model::AgentTask * > &	tasks () override

virtual void	act () override

Neighbors< NeighborAgentType >	outNeighbors () const

Neighbors< NeighborAgentType >	outNeighbors (api::graph::LayerId layer) const

Neighbors< NeighborAgentType >	inNeighbors () const

Neighbors< NeighborAgentType >	inNeighbors (api::graph::LayerId layer) const

virtual std::vector< Cell * >	successors ()=0

Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0

virtual std::vector< GroupId >	groupIds () const =0

virtual void	setGroupId (GroupId id)=0

virtual void	addGroupId (GroupId id)=0

virtual void	removeGroupId (GroupId id)=0

virtual AgentGroup *	group ()=0

virtual const AgentGroup *	group () const =0

virtual std::vector< AgentGroup * >	groups ()=0

virtual std::vector< const AgentGroup * >	groups () const =0

virtual void	setGroup (AgentGroup *group)=0

virtual void	addGroup (AgentGroup *group)=0

virtual void	removeGroup (AgentGroup *group)=0

virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0

virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0

virtual TypeId	typeId () const =0

virtual Agent *	copy () const =0

virtual void	copyAssign (Agent *agent)=0

virtual void	moveAssign (Agent *agent)=0

virtual AgentNode *	node ()=0

virtual const AgentNode *	node () const =0

virtual void	setNode (AgentNode *node)=0

virtual Model *	model ()=0

virtual const Model *	model () const =0

virtual void	setModel (Model *model)=0

virtual AgentTask *	task ()=0

virtual const AgentTask *	task () const =0

virtual void	setTask (AgentTask *task)=0

virtual AgentTask *	task (GroupId id)=0

virtual const AgentTask *	task (GroupId id) const =0

virtual void	setTask (GroupId id, AgentTask *task)=0

virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0

virtual void	act ()=0

virtual void	init ()=0

virtual void	handleNewLocation ()=0

virtual void	handleMove ()=0

virtual void	handlePerceive ()=0

virtual void	updatePerceptions (AgentGroup &group)=0

Public Member Functions inherited from fpmas::model::ReachableCell
const std::set< DistributedId > &	reachableCells () const

void	addReachableCell (DistributedId id)

void	removeReachableCell (DistributedId id)

void	clearReachableCells ()

Static Public Attributes inherited from fpmas::model::detail::AgentBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > >
static const api::model::TypeId	TYPE_ID

Protected Attributes inherited from fpmas::model::CellBase< api::model::Cell, GraphCellType, GraphCellBase< GraphCellType, GraphCellType > >
std::set< DistributedId >	no_move_flags

std::set< DistributedId >	move_flags

std::set< DistributedId >	perception_flags

Protected Attributes inherited from fpmas::model::ReachableCell
std::set< DistributedId >	reachable_cells

Detailed Description

template<typename GraphCellType, typename Derived = GraphCellType>
class fpmas::model::GraphCellBase< GraphCellType, Derived >

A basic Cell implementation that can be used to build SpatialModels based on a generic graph structure.

Template Parameters

GraphCellType	final GraphCellBase implementation
Derived	direct derived class, or at least the next class in the serialization chain

See also: GraphCell

Member Typedef Documentation

◆ JsonBase

template<typename GraphCellType , typename Derived = GraphCellType>

typedef GraphCellBase<GraphCellType, Derived> fpmas::model::GraphCellBase< GraphCellType, Derived >::JsonBase

Type that must be registered to enable Json serialization.

The documentation for this class was generated from the following file:

src/fpmas/model/spatial/graph.h
