fpmas::synchro::hard::api::MutexClient< T > Class Template Reference

#include <client_server.h>

Inheritance diagram for fpmas::synchro::hard::api::MutexClient< T >:

Public Member Functions
virtual T	read (DistributedId id, int location)=0
virtual void	releaseRead (DistributedId id, int location)=0
virtual T	acquire (DistributedId id, int location)=0
virtual void	releaseAcquire (DistributedId id, const T &updated_data, int location)=0
virtual void	lock (DistributedId id, int location)=0
virtual void	unlock (DistributedId id, int location)=0
virtual void	lockShared (DistributedId id, int location)=0
virtual void	unlockShared (DistributedId id, int location)=0

Detailed Description

template<typename T>
class fpmas::synchro::hard::api::MutexClient< T >

MutexClient API.

The MutexClient is used to transmit requests from an HardSyncMutex instance (associated to a DISTANT node) to distant processes.

All request transmission functions blocks until the corresponding response is received from the corresponding location.

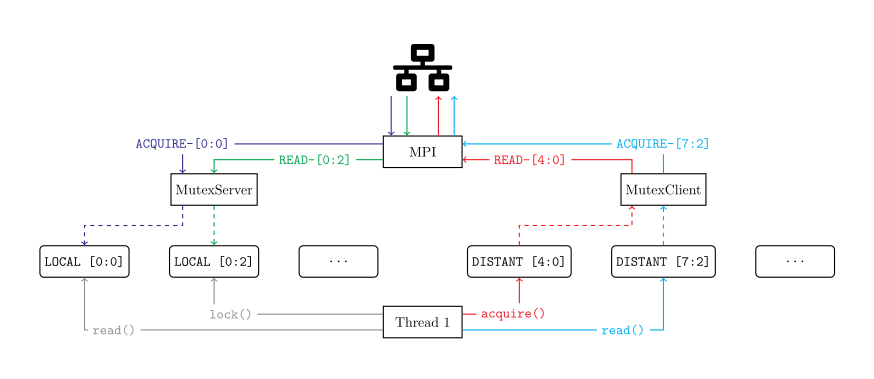

General request transmission architecture

Member Function Documentation

read()

template<typename T >

virtual T fpmas::synchro::hard::api::MutexClient< T >::read ( DistributedId  id, int  location  )

pure virtual

Transmits a READ request of node id to its location.

Parameters

id	of the node to read
location	rank of the process that own node id

Returns

read data

Implemented in fpmas::synchro::hard::MutexClient< T >.

releaseRead()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::releaseRead ( DistributedId  id, int  location  )

pure virtual

Transmits a RELEASE_READ request of node id to its location.

Parameters

id	of the read node
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

acquire()

template<typename T >

virtual T fpmas::synchro::hard::api::MutexClient< T >::acquire ( DistributedId  id, int  location  )

pure virtual

Transmits an ACQUIRE request of node id to its location.

Parameters

id	of the node to acquire
location	rank of the process that own node id

Returns

acquired data

Implemented in fpmas::synchro::hard::MutexClient< T >.

releaseAcquire()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::releaseAcquire ( DistributedId  id, const T &  updated_data, int  location  )

pure virtual

Transmits a RELEASE_ACQUIRE request of node id to its location.

The provided updated_data is serialized and transmitted to commit write operation to the owner process.

Parameters

id	of the acquired node
updated_data	reference to the locally updated data
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

lock()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::lock ( DistributedId  id, int  location  )

pure virtual

Transmits a LOCK request of node id to its location.

Parameters

id	of the node to lock
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

unlock()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::unlock ( DistributedId  id, int  location  )

pure virtual

Transmits an UNLOCK request of node id to its location.

Parameters

id	of the locked node
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

lockShared()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::lockShared ( DistributedId  id, int  location  )

pure virtual

Transmits a LOCK_SHARED request of node id to its location.

Parameters

id	of the node to share lock
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

unlockShared()

template<typename T >

virtual void fpmas::synchro::hard::api::MutexClient< T >::unlockShared ( DistributedId  id, int  location  )

pure virtual

Transmits an UNLOCK_SHARED request of node id to its location.

Parameters

id	of the share locked node
location	rank of the process that own node id

Implemented in fpmas::synchro::hard::MutexClient< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/synchro/hard/api/client_server.h
