macros.h File Reference

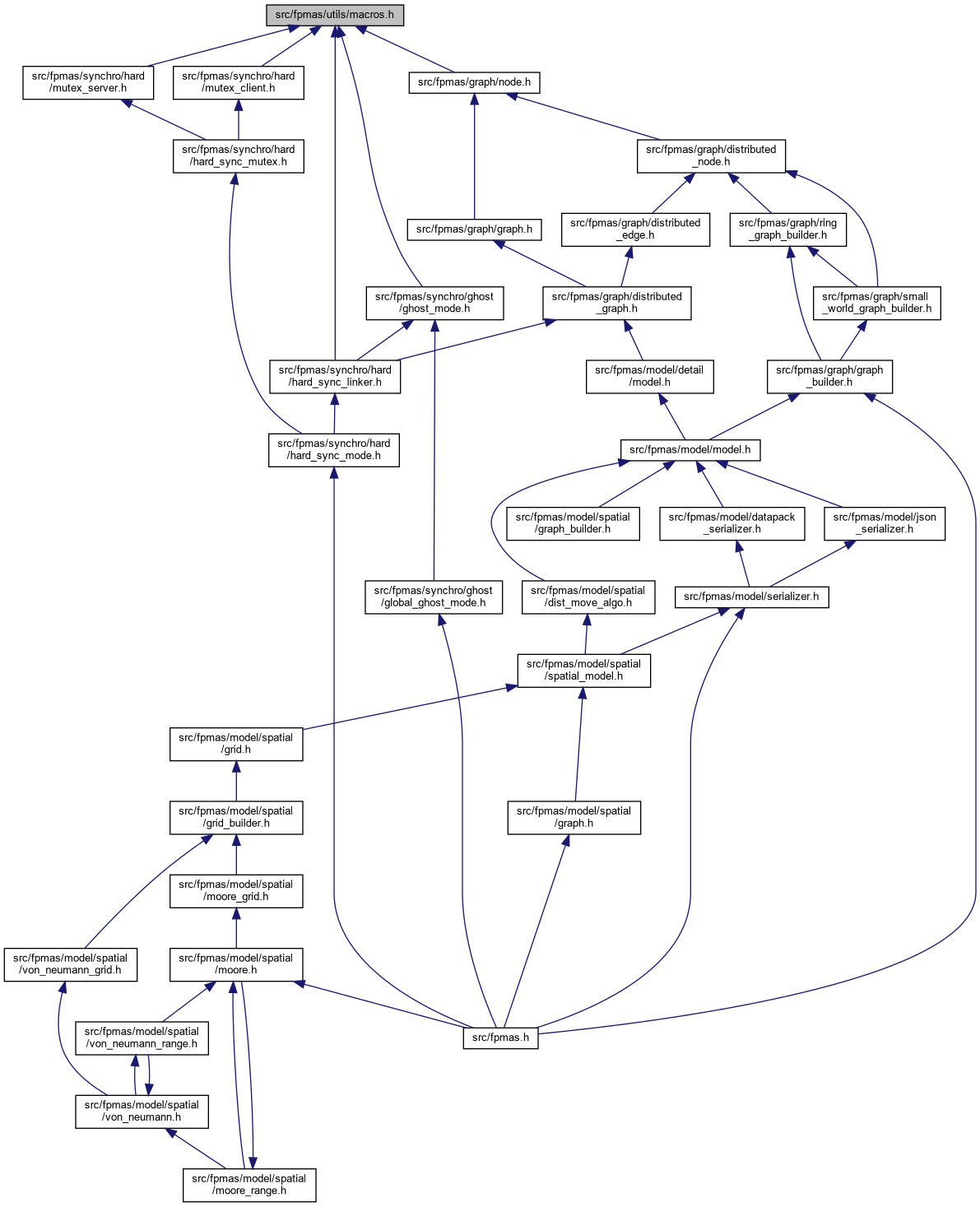

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	FPMAS_C_STR(arg)   fpmas::to_string(arg).c_str()
#define	MPI_DISTRIBUTED_ID_TYPE    fpmas::api::graph::DistributedId::mpiDistributedIdType
#define	FPMAS_ON_PROC(COMM, RANK)   if(COMM.getRank() == RANK)
#define	FPMAS_NODE_TASK(node, body)
#define	FPMAS_DEFINE_GROUPS(...)
#define	FPMAS_DEFINE_LAYERS(...)

Detailed Description

FPMAS macros.

Macro Definition Documentation

FPMAS_C_STR

#define FPMAS_C_STR

(

arg

)

fpmas::to_string(arg).c_str()

Converts arg to a C-like null terminated string.

arg must be implicitly convertible to std::string

This can be used to easily log thinks using FPMAS_LOG* macros.

Example

DistributedId id {0, 4};
FPMAS_LOGI(RANK, "Tag", "%s", FPMAS_C_STR(id));

Parameters

arg	object to convert as a C-like string

MPI_DISTRIBUTED_ID_TYPE

#define MPI_DISTRIBUTED_ID_TYPE    fpmas::api::graph::DistributedId::mpiDistributedIdType

MPI type that can be used to transmit fpmas::api::graph::DistributedId instances.

FPMAS_ON_PROC

#define FPMAS_ON_PROC	(		COMM,
			RANK
	)		if(COMM.getRank() == RANK)

Elegant expression to specify a portion of code that should be executed only on the process with the given rank.

Parameters

COMM	reference to an fpmas::api::communication::MpiCommunicator instance
RANK	rank of the process on which the code should be executed

FPMAS_NODE_TASK

#define FPMAS_NODE_TASK	(		node,
			body
	)

Value:

    fpmas::scheduler::LambdaTask\
        <std::remove_pointer<decltype(node)>::type::data_type>(node, [&] () body)

Utility macro to easily build tasks bound to a node.

Parameters

node	node to bind to the task
body	function body run by the task

FPMAS_DEFINE_GROUPS

#define FPMAS_DEFINE_GROUPS

(

...

)

Value:

    enum : fpmas::api::model::GroupId {\
        __VA_ARGS__ };

Defines a set of groups as an anonymous enum. Each group name can then be used where an fpmas::api::model::GroupId is required.

Example

FPMAS_DEFINE_GROUPS(GroupA, GroupB);

int main(int argc, char** argv) {
    ...
    model.buildGroup(GroupA);
    ...
    fpmas::api::model::AgentGroup& group_a = model.getGroup(GroupA);
    ...
}

FPMAS_DEFINE_LAYERS

#define FPMAS_DEFINE_LAYERS

(

...

)

Value:

    enum : fpmas::api::graph::LayerId {\
        __VA_ARGS__ };

Defines a set of layers as an anonymous enum. Each group name can then be used where an fpmas::api::graph::LayerId is required.

Example

FPMAS_DEFINE_LAYERS(LayerA, LayerB);

int main(int argc, char** argv) {
    ...
    graph.link(node_1, node_2, LayerA);
    ...
    auto neighbors = node_1->outNeighbors(LayerB);
    ...
}
