MetaGraphCell Class Reference

#include <cell.h>

Inheritance diagram for MetaGraphCell:

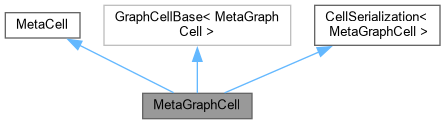

Collaboration diagram for MetaGraphCell:

Public Member Functions
	MetaGraphCell (float utility, const std::vector< char > &data)
	MetaGraphCell (float utility, std::size_t cell_size)
const fpmas::api::model::AgentNode *	cellNode () const override
	MetaCell ()=default
	MetaCell (float utility, std::size_t cell_size)
	MetaCell (float utility, const std::vector< char > &data)
Public Member Functions inherited from MetaCell
	MetaCell ()=default
	MetaCell (float utility, std::size_t cell_size)
	MetaCell (float utility, const std::vector< char > &data)
float	getUtility () const
const std::vector< char > &	getData () const
void	update_edge_weights ()
virtual void	read_all_cell ()=0
virtual void	read_one_cell ()=0
virtual void	write_all_cell ()=0
virtual void	write_one_cell ()=0
virtual void	read_all_write_one_cell ()=0
virtual void	read_all_write_all_cell ()=0
virtual const fpmas::api::model::AgentNode *	cellNode () const =0

Additional Inherited Members
Static Public Member Functions inherited from CellSerialization< MetaGraphCell >
static void	to_json (nlohmann::json &j, const MetaGraphCell *cell)
static MetaGraphCell *	from_json (const nlohmann::json &j)
static std::size_t	size (const fpmas::io::datapack::ObjectPack &o, const MetaGraphCell *cell)
static void	to_datapack (fpmas::io::datapack::ObjectPack &o, const MetaGraphCell *cell)
static MetaGraphCell *	from_datapack (const fpmas::io::datapack::ObjectPack &o)
Static Public Attributes inherited from MetaCell
static float	cell_edge_weight

Detailed Description

MetaCell extension of MetaGraphModel.

Constructor & Destructor Documentation

MetaGraphCell() [1/2]

MetaGraphCell::MetaGraphCell ( float  utility, const std::vector< char > &  data  )

inline

MetaGraphCell constructor.

Parameters

utility	Utility of the cell
data	Vector of dummy data

MetaGraphCell() [2/2]

MetaGraphCell::MetaGraphCell ( float  utility, std::size_t  cell_size  )

inline

MetaGraphCell constructor.

The vector of dummy data is allocated and default initialized with the specified count of elements.

Parameters

utility	Utility of the cell
cell_size	Size of the vector of dummy data

Member Function Documentation

cellNode()

const fpmas::api::model::AgentNode * MetaGraphCell::cellNode ( ) const

inlineoverridevirtual

Returns a pointer to the node containing the cell.

Implements MetaCell.

MetaCell() [1/3]

MetaCell::MetaCell ( )

default

Default generated MetaCell constructor, for internal use only.

MetaCell() [2/3]

MetaCell::MetaCell ( float  utility, std::size_t  cell_size  )

inline

MetaCell constructor.

The vector of dummy data is allocated and default initialized with the specified count of elements.

Parameters

utility	Utility of the cell
cell_size	Size of the vector of dummy data

MetaCell() [3/3]

MetaCell::MetaCell ( float  utility, const std::vector< char > &  data  )

inline

MetaCell constructor.

Parameters

utility	Utility of the cell
data	Vector of dummy data

---

The documentation for this class was generated from the following file:

• include/cell.h
