#include <output.h>

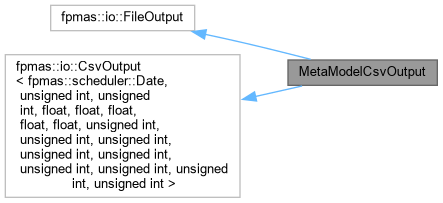

Inheritance diagram for MetaModelCsvOutput:

Collaboration diagram for MetaModelCsvOutput:

Public Member Functions
	MetaModelCsvOutput (BasicMetaModel &meta_model, fpmas::api::utils::perf::Probe &balance_probe, fpmas::api::utils::perf::Probe &distribute_probe, fpmas::api::utils::perf::Probe &local_read_probe, fpmas::api::utils::perf::Probe &local_write_probe, fpmas::api::utils::perf::Probe &distant_read_probe, fpmas::api::utils::perf::Probe &distant_write_probe, fpmas::api::utils::perf::Probe &sync_probe, fpmas::api::utils::perf::Monitor &monitor)

const fpmas::scheduler::JobList &	jobs ()

Detailed Description

MetaModel CSV output.

The following fields are written by each process to its own CSV file:

TIME: current time step
BALANCE_TIME: time required to apply the load balancing algorithm and distributed the model according to the new partition. Includes DISTRIBUTE_TIME.
DISTRIBUTE_TIME: time required to distribute the model
AGENTS: total weight of LOCAL agents
CELLS: total weight of LOCAL cells
DISTANT_AGENT_EDGES: total weight of DISTANT edges between two agents (PERCEPTION)
DISTANT_AGENT_CELL_EDGES: total weight of DISTANT edges between an agent and a cell (LOCATION + PERCEIVE + MOVE)
DISTANT_CELL_EDGES: total weight of DISTANT edges between two cells (CELL_SUCCESSOR)
LOCAL_CELL_READ_TIME: total time spent in read operations between two LOCAL cells.
LOCAL_CELL_READ_COUNT: total count of read operations between two LOCAL cells.
LOCAL_CELL_WRITE_TIME: total time spent in write operations between two LOCAL cells.
LOCAL_CELL_WRITE_COUNT: total count of write operations between two LOCAL cells.
DISTANT_CELL_READ_TIME: total time spent in read operations from a LOCAL to a DISTANT cell.
DISTANT_CELL_READ_COUNT: total count of read operations from a LOCAL to a DISTANT cell.
DISTANT_CELL_WRITE_TIME: total time spent in write operations from a LOCAL to a DISTANT cell.
DISTANT_CELL_WRITE_COUNT: total count of write operations from a LOCAL to a DISTANT cell.
CELL_SYNC: total time spent synchronizing read/write operations between cells.

Constructor & Destructor Documentation

MetaModelCsvOutput::MetaModelCsvOutput	(	BasicMetaModel &	meta_model,
		fpmas::api::utils::perf::Probe &	balance_probe,
		fpmas::api::utils::perf::Probe &	distribute_probe,
		fpmas::api::utils::perf::Probe &	local_read_probe,
		fpmas::api::utils::perf::Probe &	local_write_probe,
		fpmas::api::utils::perf::Probe &	distant_read_probe,
		fpmas::api::utils::perf::Probe &	distant_write_probe,
		fpmas::api::utils::perf::Probe &	sync_probe,
		fpmas::api::utils::perf::Monitor &	monitor
	)

The name of the output CSV file is set as "[model name].\%r.csv" where %r is the rank of the current process.

Parameters

meta_model	Model from which data is gathered
balance_probe	`BALANCE_TIME` probe
distribute_probe	`DISTRIBUTE_TIME` probe
local_read_probe	`LOCAL_CELL_[READ/COUNT]_TIME` probe
local_write_probe	`LOCAL_CELL_[WRITE/COUNT]_TIME` probe
distant_read_probe	`DISTANT_CELL_[READ/COUNT]_TIME` probe
distant_write_probe	`DISTANT_CELL_[WRITE/COUNT]_TIME` probe
sync_probe	`CELL_SYNC` probe
monitor	Monitor used to manage probes

const fpmas::scheduler::JobList & MetaModelCsvOutput::jobs ( )

inline

Job to schedule at each iteration to dump CSV data.

The documentation for this class was generated from the following file:
