fpmas::api::model::GridCell Class Reference

#include <grid.h>

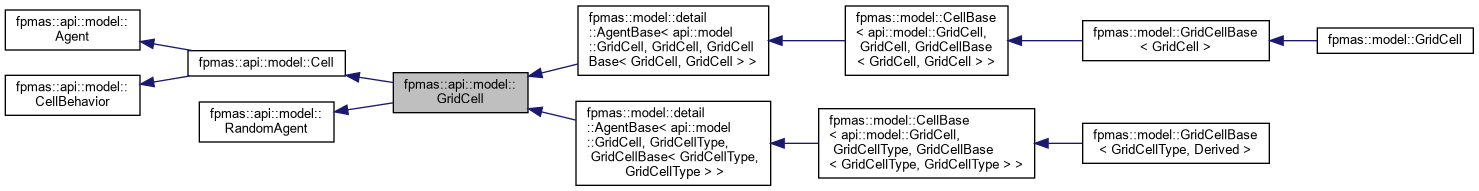

Inheritance diagram for fpmas::api::model::GridCell:

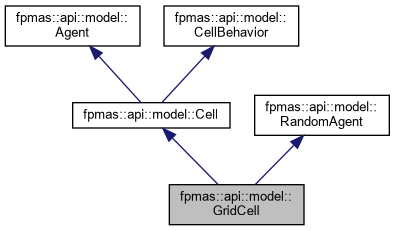

Collaboration diagram for fpmas::api::model::GridCell:

Public Member Functions
virtual DiscretePoint	location () const =0
Public Member Functions inherited from fpmas::api::model::Cell
virtual std::vector< Cell * >	successors ()=0
Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0
virtual std::vector< GroupId >	groupIds () const =0
virtual void	setGroupId (GroupId id)=0
virtual void	addGroupId (GroupId id)=0
virtual void	removeGroupId (GroupId id)=0
virtual AgentGroup *	group ()=0
virtual const AgentGroup *	group () const =0
virtual std::vector< AgentGroup * >	groups ()=0
virtual std::vector< const AgentGroup * >	groups () const =0
virtual void	setGroup (AgentGroup *group)=0
virtual void	addGroup (AgentGroup *group)=0
virtual void	removeGroup (AgentGroup *group)=0
virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0
virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0
virtual TypeId	typeId () const =0
virtual Agent *	copy () const =0
virtual void	copyAssign (Agent *agent)=0
virtual void	moveAssign (Agent *agent)=0
virtual AgentNode *	node ()=0
virtual const AgentNode *	node () const =0
virtual void	setNode (AgentNode *node)=0
virtual Model *	model ()=0
virtual const Model *	model () const =0
virtual void	setModel (Model *model)=0
virtual AgentTask *	task ()=0
virtual const AgentTask *	task () const =0
virtual void	setTask (AgentTask *task)=0
virtual AgentTask *	task (GroupId id)=0
virtual const AgentTask *	task (GroupId id) const =0
virtual void	setTask (GroupId id, AgentTask *task)=0
virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0
virtual void	act ()=0
Public Member Functions inherited from fpmas::api::model::CellBehavior
virtual void	init ()=0
virtual void	handleNewLocation ()=0
virtual void	handleMove ()=0
virtual void	handlePerceive ()=0
virtual void	updatePerceptions (AgentGroup &group)=0
Public Member Functions inherited from fpmas::api::model::RandomAgent
virtual api::random::Generator< std::FPMAS_AGENT_RNG::result_type > &	rd ()=0
virtual void	seed (std::FPMAS_AGENT_RNG::result_type seed)=0

Detailed Description

Cell API extension to represent a Cell in a Grid.

Contrary to base Cells that do not need to be explicitly situated, GridCells are situated using a DiscretePoint.

Member Function Documentation

location()

virtual DiscretePoint fpmas::api::model::GridCell::location ( ) const

pure virtual

Returns the GridCell location.

Returns

grid cell location

Implemented in fpmas::model::GridCellBase< GridCellType, Derived >, and fpmas::model::GridCellBase< GridCell >.

---

The documentation for this class was generated from the following file:

• src/fpmas/api/model/spatial/grid.h
