#include <grid.h>

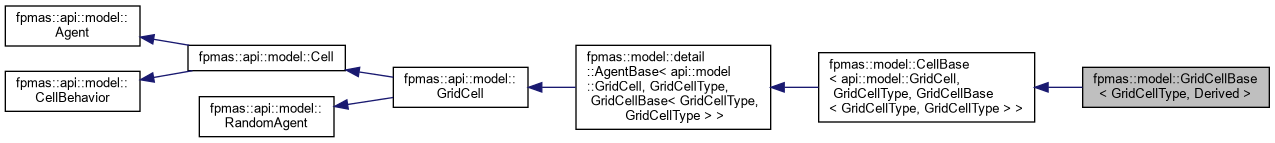

Inheritance diagram for fpmas::model::GridCellBase< GridCellType, Derived >:

[legend]

Collaboration diagram for fpmas::model::GridCellBase< GridCellType, Derived >:

[legend]

Public Types
typedef GridCellBase< GridCellType, Derived >	JsonBase

Public Types inherited from fpmas::model::detail::AgentBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > >
typedef GridCellType	FinalAgentType

Public Member Functions
	GridCellBase ()

	GridCellBase (DiscretePoint location)

DiscretePoint	location () const override

random::FPMAS_AGENT_RNG &	rd () override

void	seed (random::FPMAS_AGENT_RNG::result_type seed) override

Public Member Functions inherited from fpmas::model::CellBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > >
	CellBase ()=default

	CellBase (const CellBase &)=default

	CellBase (CellBase &&)=default

CellBase &	operator= (const CellBase &)=default

CellBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > > &	operator= (CellBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > > &&)

std::vector< api::model::Cell * >	successors () override

void	handleNewLocation () override

void	handleMove () override

void	handlePerceive () override

void	updatePerceptions (api::model::AgentGroup &group) override

void	init () override

Public Member Functions inherited from fpmas::model::detail::AgentBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > >
	AgentBase ()=default

	AgentBase (const AgentBase &agent)=default

	AgentBase (AgentBase &&)=default

AgentBase &	operator= (const AgentBase &agent)=default

AgentBase &	operator= (AgentBase &&)

GroupId	groupId () const override

std::vector< GroupId >	groupIds () const override

void	setGroupId (api::model::GroupId id) override

void	addGroupId (api::model::GroupId id) override

void	removeGroupId (api::model::GroupId id) override

api::model::AgentGroup *	group () override

const api::model::AgentGroup *	group () const override

std::vector< const api::model::AgentGroup * >	groups () const override

std::vector< api::model::AgentGroup * >	groups () override

void	setGroup (api::model::AgentGroup *group) override

void	addGroup (api::model::AgentGroup *group) override

void	removeGroup (api::model::AgentGroup *group) override

void	setGroupPos (api::model::GroupId gid, std::list< api::model::Agent * >::iterator pos) override

std::list< api::model::Agent * >::iterator	getGroupPos (api::model::GroupId gid) const override

api::model::TypeId	typeId () const override

api::model::Agent *	copy () const override

void	copyAssign (api::model::Agent *agent) override

void	moveAssign (api::model::Agent *agent) override

api::model::AgentNode *	node () override

const api::model::AgentNode *	node () const override

void	setNode (api::model::AgentNode *node) override

api::model::Model *	model () override

const api::model::Model *	model () const override

void	setModel (api::model::Model *model) override

api::model::AgentTask *	task () override

const api::model::AgentTask *	task () const override

api::model::AgentTask *	task (api::model::GroupId id) override

const api::model::AgentTask *	task (api::model::GroupId id) const override

void	setTask (api::model::AgentTask *task) override

void	setTask (api::model::GroupId id, api::model::AgentTask *task) override

const std::unordered_map< api::model::GroupId, api::model::AgentTask * > &	tasks () override

virtual void	act () override

Neighbors< NeighborAgentType >	outNeighbors () const

Neighbors< NeighborAgentType >	outNeighbors (api::graph::LayerId layer) const

Neighbors< NeighborAgentType >	inNeighbors () const

Neighbors< NeighborAgentType >	inNeighbors (api::graph::LayerId layer) const

virtual DiscretePoint	location () const =0

virtual std::vector< Cell * >	successors ()=0

Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0

virtual std::vector< GroupId >	groupIds () const =0

virtual void	setGroupId (GroupId id)=0

virtual void	addGroupId (GroupId id)=0

virtual void	removeGroupId (GroupId id)=0

virtual AgentGroup *	group ()=0

virtual const AgentGroup *	group () const =0

virtual std::vector< AgentGroup * >	groups ()=0

virtual std::vector< const AgentGroup * >	groups () const =0

virtual void	setGroup (AgentGroup *group)=0

virtual void	addGroup (AgentGroup *group)=0

virtual void	removeGroup (AgentGroup *group)=0

virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0

virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0

virtual TypeId	typeId () const =0

virtual Agent *	copy () const =0

virtual void	copyAssign (Agent *agent)=0

virtual void	moveAssign (Agent *agent)=0

virtual AgentNode *	node ()=0

virtual const AgentNode *	node () const =0

virtual void	setNode (AgentNode *node)=0

virtual Model *	model ()=0

virtual const Model *	model () const =0

virtual void	setModel (Model *model)=0

virtual AgentTask *	task ()=0

virtual const AgentTask *	task () const =0

virtual void	setTask (AgentTask *task)=0

virtual AgentTask *	task (GroupId id)=0

virtual const AgentTask *	task (GroupId id) const =0

virtual void	setTask (GroupId id, AgentTask *task)=0

virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0

virtual void	act ()=0

virtual void	init ()=0

virtual void	handleNewLocation ()=0

virtual void	handleMove ()=0

virtual void	handlePerceive ()=0

virtual void	updatePerceptions (AgentGroup &group)=0

Public Member Functions inherited from fpmas::api::model::RandomAgent
virtual api::random::Generator< std::FPMAS_AGENT_RNG::result_type > &	rd ()=0

virtual void	seed (std::FPMAS_AGENT_RNG::result_type seed)=0

Additional Inherited Members
Static Public Attributes inherited from fpmas::model::detail::AgentBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > >
static const api::model::TypeId	TYPE_ID

Protected Attributes inherited from fpmas::model::CellBase< api::model::GridCell, GridCellType, GridCellBase< GridCellType, GridCellType > >
std::set< DistributedId >	no_move_flags

std::set< DistributedId >	move_flags

std::set< DistributedId >	perception_flags

Detailed Description

template<typename GridCellType, typename Derived = GridCellType>
class fpmas::model::GridCellBase< GridCellType, Derived >

api::model::GridCell implementation.

Template Parameters

GridCellType	dynamic GridCellBase type (i.e. the most derived type from this GridCellBase)
Derived	direct derived class, or at least the next class in the serialization chain

Member Typedef Documentation

◆ JsonBase

template<typename GridCellType , typename Derived = GridCellType>

typedef GridCellBase<GridCellType, Derived> fpmas::model::GridCellBase< GridCellType, Derived >::JsonBase

Type that must be registered to enable Json serialization.

Constructor & Destructor Documentation

◆ GridCellBase() [1/2]

template<typename GridCellType , typename Derived = GridCellType>

fpmas::model::GridCellBase< GridCellType, Derived >::GridCellBase ( )

inline

Default GridCellBase constructor.

◆ GridCellBase() [2/2]

template<typename GridCellType , typename Derived = GridCellType>

fpmas::model::GridCellBase< GridCellType, Derived >::GridCellBase ( DiscretePoint location )

inline

GridCellBase constructor.

Parameters

location grid cell coordinates

Member Function Documentation

◆ location()

template<typename GridCellType , typename Derived = GridCellType>

DiscretePoint fpmas::model::GridCellBase< GridCellType, Derived >::location ( ) const

inlineoverridevirtual

Returns the GridCell location.

Returns: grid cell location

Implements fpmas::api::model::GridCell.

◆ rd()

template<typename GridCellType , typename Derived = GridCellType>

random::FPMAS_AGENT_RNG & fpmas::model::GridCellBase< GridCellType, Derived >::rd ( )

inlineoverridevirtual

Returns a reference to the sequential random number bound to this agent.

The implementation should ensure that each agent produces an indenpendent random number sequence.

This can be perfomed:

Bounding a sequential generator to all agents, and seed() them independently.
Using a global DistributedGenerator

Implements fpmas::api::model::RandomAgent.

◆ seed()

template<typename GridCellType , typename Derived = GridCellType>

void fpmas::model::GridCellBase< GridCellType, Derived >::seed ( random::FPMAS_AGENT_RNG::result_type seed )

inlineoverride

Seeds the generator bound to this agent.

Note: The generator is seeded from this agent, even if it is shared by several agents, for example in the case of a DistributedGenerator.

The documentation for this class was generated from the following file:

src/fpmas/model/spatial/grid.h
