fpmas::api::synchro::SyncLinker< T > Class Template Reference

#include <sync_mode.h>

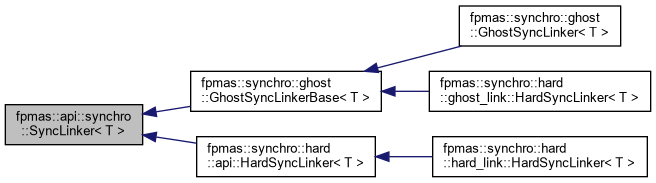

Inheritance diagram for fpmas::api::synchro::SyncLinker< T >:

Public Member Functions
virtual void	link (api::graph::DistributedEdge< T > *edge)=0
virtual void	unlink (api::graph::DistributedEdge< T > *edge)=0
virtual void	removeNode (api::graph::DistributedNode< T > *node)=0
virtual void	synchronize ()=0

Detailed Description

template<typename T>
class fpmas::api::synchro::SyncLinker< T >

Synchronized linker API.

The behavior of this component can be very different depending on the implemented synchronization mode. See the corresponding implementations for more details.

Notified link, unlink or node removal operations correspond to intentional user operations. Internal and low-level operations that might occur while distributing the graph for example are not notified to the SyncLinker.

Whatever the synchronization mode is, it is guaranteed that when the next synchronize() call returns, all notified operations are committed and applied globally.

For example, if removeNode() is called with a DISTANT node as argument, the local representation of the node (and its linked DISTANT edges) might be deleted from the local graph, but it is guaranteed that the Node and its linked edges are globally removed from the global graph (i.e. also from other processes, including the process that owns the node) only when synchronize() is called.

Member Function Documentation

link()

template<typename T >

virtual void fpmas::api::synchro::SyncLinker< T >::link ( api::graph::DistributedEdge< T > *  edge )

pure virtual

Notifies the specified edge has been linked.

Parameters

edge	linked edge

Implemented in fpmas::synchro::ghost::GhostSyncLinkerBase< T >, and fpmas::synchro::hard::hard_link::HardSyncLinker< T >.

unlink()

template<typename T >

virtual void fpmas::api::synchro::SyncLinker< T >::unlink ( api::graph::DistributedEdge< T > *  edge )

pure virtual

Notifies the specified edge must be unlinked.

Parameters

edge	edge to unlink

Implemented in fpmas::synchro::ghost::GhostSyncLinkerBase< T >, and fpmas::synchro::hard::hard_link::HardSyncLinker< T >.

removeNode()

template<typename T >

virtual void fpmas::api::synchro::SyncLinker< T >::removeNode ( api::graph::DistributedNode< T > *  node )

pure virtual

Notifies the specified node must be removed.

Parameters

node	node to remove

Implemented in fpmas::synchro::ghost::GhostSyncLinkerBase< T >, and fpmas::synchro::hard::hard_link::HardSyncLinker< T >.

synchronize()

template<typename T >

virtual void fpmas::api::synchro::SyncLinker< T >::synchronize ( )

pure virtual

Synchronizes link, unlink and node removal operations across the processes.

Implemented in fpmas::synchro::ghost::GhostSyncLinker< T >, fpmas::synchro::hard::hard_link::HardSyncLinker< T >, and fpmas::synchro::hard::ghost_link::HardSyncLinker< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/api/synchro/sync_mode.h
