fpmas::synchro::ghost::GhostSyncLinkerBase< T > Class Template Reference

#include <ghost_mode.h>

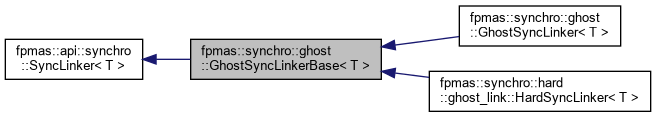

Inheritance diagram for fpmas::synchro::ghost::GhostSyncLinkerBase< T >:

Collaboration diagram for fpmas::synchro::ghost::GhostSyncLinkerBase< T >:

Public Types
typedef api::graph::DistributedEdge< T >	EdgeApi
typedef api::graph::DistributedNode< T >	NodeApi
typedef api::utils::PtrWrapper< EdgeApi >	EdgePtr
typedef api::communication::TypedMpi< EdgePtr >	EdgeMpi
typedef api::communication::TypedMpi< DistributedId >	IdMpi

Public Member Functions
	GhostSyncLinkerBase (EdgeMpi &edge_mpi, IdMpi &id_mpi, api::graph::DistributedGraph< T > &graph)
void	link (EdgeApi *edge) override
void	unlink (EdgeApi *edge) override
void	removeNode (NodeApi *node) override
Public Member Functions inherited from fpmas::api::synchro::SyncLinker< T >
virtual void	link (api::graph::DistributedEdge< T > *edge)=0
virtual void	unlink (api::graph::DistributedEdge< T > *edge)=0
virtual void	removeNode (api::graph::DistributedNode< T > *node)=0
virtual void	synchronize ()=0

Protected Member Functions
void	synchronize_links ()

Detailed Description

template<typename T>
class fpmas::synchro::ghost::GhostSyncLinkerBase< T >

Base GhostMode SyncLinker implementation.

Link, unlink and node removal requests involving DISTANT nodes are buffered until synchronize_links() is called.

This class defines everything required to implement an api::synchro::SyncLinker that only commits link, unlink and node removal requests using collective communications. The commit operations can notably be performed using the simple synchronize_links() method. The only method not implemented is synchronize(), so that custom api::synchro::SyncLinker implementations can be defined extending this class. Notice that the synchronize() implementation can be as simple as a call to synchronize_links(), as performed by the GhostSyncLinker.

Member Typedef Documentation

EdgeApi

template<typename T >

typedef api::graph::DistributedEdge<T> fpmas::synchro::ghost::GhostSyncLinkerBase< T >::EdgeApi

DistributedEdge API

NodeApi

template<typename T >

typedef api::graph::DistributedNode<T> fpmas::synchro::ghost::GhostSyncLinkerBase< T >::NodeApi

DistributedNode API

EdgePtr

template<typename T >

typedef api::utils::PtrWrapper<EdgeApi> fpmas::synchro::ghost::GhostSyncLinkerBase< T >::EdgePtr

DistributedEdge pointer wrapper

EdgeMpi

template<typename T >

typedef api::communication::TypedMpi<EdgePtr> fpmas::synchro::ghost::GhostSyncLinkerBase< T >::EdgeMpi

TypedMpi used to transmit Edges with MPI.

IdMpi

template<typename T >

typedef api::communication::TypedMpi<DistributedId> fpmas::synchro::ghost::GhostSyncLinkerBase< T >::IdMpi

TypedMpi used to transmit DistributedIds with MPI.

Constructor & Destructor Documentation

GhostSyncLinkerBase()

template<typename T >

fpmas::synchro::ghost::GhostSyncLinkerBase< T >::GhostSyncLinkerBase ( EdgeMpi &  edge_mpi, IdMpi &  id_mpi, api::graph::DistributedGraph< T > &  graph  )

inline

GhostSyncLinker constructor.

Parameters

edge_mpi	EdgePtr MPI communicator
id_mpi	DistributedId MPI communicator
graph	reference to the associated DistributedGraph

Member Function Documentation

synchronize_links()

template<typename T >

void fpmas::synchro::ghost::GhostSyncLinkerBase< T >::synchronize_links

protected

Commits currently buffered link, unlink and node removal operations.

link()

template<typename T >

void fpmas::synchro::ghost::GhostSyncLinkerBase< T >::link ( EdgeApi *  edge )

overridevirtual

If source or target node is DISTANT, edge is buffered to be committed at the next synchronize() call.

Parameters

edge	linked edge

Implements fpmas::api::synchro::SyncLinker< T >.

unlink()

template<typename T >

void fpmas::synchro::ghost::GhostSyncLinkerBase< T >::unlink ( EdgeApi *  edge )

overridevirtual

If source or target node is DISTANT, edge unlinking is buffered to be committed at the next synchronize() call.

For efficiency purpose, the edge is removed from the link buffer if it was not committed yet.

Parameters

edge	unlinked edge

Implements fpmas::api::synchro::SyncLinker< T >.

removeNode()

template<typename T >

void fpmas::synchro::ghost::GhostSyncLinkerBase< T >::removeNode ( NodeApi *  node )

overridevirtual

Notifies the specified node must be removed.

Parameters

node	node to remove

Implements fpmas::api::synchro::SyncLinker< T >.

---

The documentation for this class was generated from the following file:

• src/fpmas/synchro/ghost/ghost_mode.h
