#include <distributed_node.h>

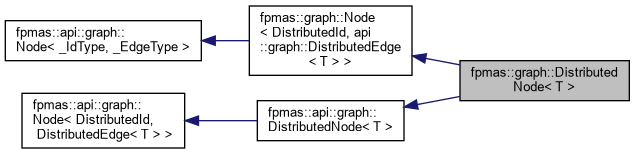

Inheritance diagram for fpmas::graph::DistributedNode< T >:

[legend]

Collaboration diagram for fpmas::graph::DistributedNode< T >:

[legend]

Public Member Functions
	DistributedNode (const DistributedId &id, const T &data)

	DistributedNode (const DistributedId &id, T &&data)

int	location () const override

void	setLocation (int location) override

api::graph::LocationState	state () const override

void	setState (api::graph::LocationState state) override

T &	data () override

const T &	data () const override

void	setMutex (Mutex *mutex) override

Mutex *	mutex () override

const Mutex *	mutex () const override

virtual IdType	getId () const =0

virtual float	getWeight () const =0

virtual void	setWeight (float weight)=0

virtual const std::vector< EdgeType * >	getIncomingEdges () const =0

virtual const std::vector< EdgeType * >	getIncomingEdges (LayerId layer_id) const =0

virtual const std::vector< typename EdgeType::NodeType * >	inNeighbors () const =0

virtual const std::vector< typename EdgeType::NodeType * >	inNeighbors (LayerId layer_id) const =0

virtual const std::vector< EdgeType * >	getOutgoingEdges () const =0

virtual const std::vector< EdgeType * >	getOutgoingEdges (LayerId layer_id) const =0

virtual const std::vector< typename EdgeType::NodeType * >	outNeighbors () const =0

virtual const std::vector< typename EdgeType::NodeType * >	outNeighbors (LayerId layer_id) const =0

virtual void	linkIn (EdgeType *edge)=0

virtual void	linkOut (EdgeType *edge)=0

virtual void	unlinkIn (EdgeType *edge)=0

virtual void	unlinkOut (EdgeType *edge)=0

virtual int	location () const =0

virtual void	setLocation (int location)=0

virtual LocationState	state () const =0

virtual void	setState (LocationState state)=0

virtual T &	data ()=0

virtual const T &	data () const =0

virtual void	setMutex (synchro::Mutex< T > *mutex)=0

virtual synchro::Mutex< T > *	mutex ()=0

virtual const synchro::Mutex< T > *	mutex () const =0

Public Member Functions inherited from fpmas::api::graph::Node< DistributedId, DistributedEdge< T > >
virtual IdType	getId () const=0

virtual float	getWeight () const=0

virtual void	setWeight (float weight)=0

virtual const std::vector< EdgeType * >	getIncomingEdges () const=0

virtual const std::vector< EdgeType * >	getIncomingEdges (LayerId layer_id) const=0

virtual const std::vector< typename EdgeType::NodeType * >	inNeighbors () const=0

virtual const std::vector< typename EdgeType::NodeType * >	inNeighbors (LayerId layer_id) const=0

virtual const std::vector< EdgeType * >	getOutgoingEdges () const=0

virtual const std::vector< EdgeType * >	getOutgoingEdges (LayerId layer_id) const=0

virtual const std::vector< typename EdgeType::NodeType * >	outNeighbors () const=0

virtual const std::vector< typename EdgeType::NodeType * >	outNeighbors (LayerId layer_id) const=0

virtual void	linkIn (EdgeType *edge)=0

virtual void	linkOut (EdgeType *edge)=0

virtual void	unlinkIn (EdgeType *edge)=0

virtual void	unlinkOut (EdgeType *edge)=0

Additional Inherited Members
Public Types inherited from fpmas::api::graph::Node< _IdType, _EdgeType >
typedef _IdType	IdType

typedef _EdgeType	EdgeType

Public Types inherited from fpmas::api::graph::DistributedNode< T >
typedef T	data_type

Public Types inherited from fpmas::api::graph::Node< DistributedId, DistributedEdge< T > >
typedef DistributedId	IdType

typedef DistributedEdge< T >	EdgeType

Detailed Description

template<typename T>
class fpmas::graph::DistributedNode< T >

api::graph::DistributedNode implementation.

Constructor & Destructor Documentation

◆ DistributedNode() [1/2]

template<typename T >

fpmas::graph::DistributedNode< T >::DistributedNode	(	const DistributedId &	id,
		const T &	data
	)

inline

DistributedNode constructor.

data is copied into the DistributedNode.

Parameters

id	node id
data	lvalue reference data to copy to the node

◆ DistributedNode() [2/2]

template<typename T >

fpmas::graph::DistributedNode< T >::DistributedNode	(	const DistributedId &	id,
		T &&	data
	)

inline

DistributedNode constructor.

data is moved into the DistributedNode.

Parameters

id	node id
data	rvalue reference to data to move into the node

◆ ~DistributedNode()

template<typename T >

fpmas::graph::DistributedNode< T >::~DistributedNode ( )

inlinevirtual

Reimplemented from fpmas::api::graph::DistributedNode< T >.

Member Function Documentation

◆ location()

template<typename T >

int fpmas::graph::DistributedNode< T >::location ( ) const

inlineoverridevirtual

Rank of the process on which this node is currently located.

If the node is LOCAL, this rank corresponds to the current process.

Returns: node location

Implements fpmas::api::graph::DistributedNode< T >.

◆ setLocation()

template<typename T >

void fpmas::graph::DistributedNode< T >::setLocation ( int location )

inlineoverridevirtual

Updates the location of the node.

Only used for internal / serialization.

Parameters

location new location

Implements fpmas::api::graph::DistributedNode< T >.

◆ state()

template<typename T >

api::graph::LocationState fpmas::graph::DistributedNode< T >::state ( ) const

inlineoverridevirtual

Current state of the node.

A DistributedNode is LOCAL iff it is currently hosted and managed by the current process. A DISTANT DistributedNode correspond to a representation of a node currently hosted by an other process.

Returns: current node state

Implements fpmas::api::graph::DistributedNode< T >.

◆ setState()

template<typename T >

void fpmas::graph::DistributedNode< T >::setState ( api::graph::LocationState state )

inlineoverridevirtual

Updates the state of the node.

Only intended for internal / serialization usage.

Parameters

state new state

Implements fpmas::api::graph::DistributedNode< T >.

◆ data() [1/2]

template<typename T >

T & fpmas::graph::DistributedNode< T >::data ( )

inlineoverridevirtual

Returns a reference to the internal node data.

Returns: reference to node's data

Implements fpmas::api::graph::DistributedNode< T >.

◆ data() [2/2]

template<typename T >

const T & fpmas::graph::DistributedNode< T >::data ( ) const

inlineoverridevirtual

Returns a reference to the internal node data.

Returns: reference to node's data

Implements fpmas::api::graph::DistributedNode< T >.

◆ setMutex()

template<typename T >

void fpmas::graph::DistributedNode< T >::setMutex ( Mutex * mutex )

inlineoverridevirtual

Sets the internal mutex of the node.

The concrete mutex type used might depend on the graph synchronization mode.

Parameters

mutex node mutex

Implements fpmas::api::graph::DistributedNode< T >.

◆ mutex() [1/2]

template<typename T >

Mutex * fpmas::graph::DistributedNode< T >::mutex ( )

inlineoverridevirtual

Internal node mutex.

The role of the mutex is to protect the access to the internal T instance. The data references return by the Mutex methods correspond the node's internal T instance.

Returns: pointer to the internal node mutex

Implements fpmas::api::graph::DistributedNode< T >.

◆ mutex() [2/2]

template<typename T >

const Mutex * fpmas::graph::DistributedNode< T >::mutex ( ) const

inlineoverridevirtual

Internal node mutex.

The role of the mutex is to protect the access to the internal T instance. The data references return by the Mutex methods correspond the node's internal T instance.

Returns: pointer to the internal node mutex

Implements fpmas::api::graph::DistributedNode< T >.

The documentation for this class was generated from the following file:

src/fpmas/graph/distributed_node.h
