#include <spatial_model.h>

Inheritance diagram for fpmas::model::MoveAgentGroup< CellType >:

[legend]

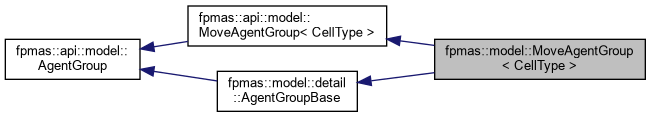

Collaboration diagram for fpmas::model::MoveAgentGroup< CellType >:

[legend]

Public Member Functions
	MoveAgentGroup (api::model::GroupId group_id, const api::model::Behavior &behavior, api::model::SpatialModel< CellType > &model, api::model::EndCondition< CellType > &end_condition)

api::scheduler::JobList	jobs () const override

api::model::DistributedMoveAlgorithm< CellType > &	distributedMoveAlgorithm () override

virtual DistributedMoveAlgorithm< CellType > &	distributedMoveAlgorithm ()=0

virtual GroupId	groupId () const =0

virtual const Behavior &	behavior ()=0

virtual void	add (Agent *agent)=0

virtual void	remove (Agent *agent)=0

virtual void	clear ()=0

virtual void	insert (AgentPtr *agent)=0

virtual void	erase (AgentPtr *agent)=0

virtual std::vector< Agent * >	agents () const =0

virtual std::vector< Agent * >	localAgents () const =0

virtual std::vector< Agent * >	distantAgents () const =0

virtual api::scheduler::Job &	job ()=0

virtual const api::scheduler::Job &	job () const =0

virtual api::scheduler::Job &	agentExecutionJob ()=0

virtual const api::scheduler::Job &	agentExecutionJob () const =0

virtual api::scheduler::JobList	jobs () const =0

virtual void	addEventHandler (Event event, api::utils::Callback< Agent * > *callback)=0

virtual void	removeEventHandler (Event event, api::utils::Callback< Agent * > *callback)=0

Public Member Functions inherited from fpmas::model::detail::AgentGroupBase
	AgentGroupBase (GroupId group_id, api::model::AgentGraph &agent_graph)

	AgentGroupBase (const AgentGroupBase &)=delete

AgentGroupBase &	operator= (const AgentGroupBase &)=delete

	AgentGroupBase (GroupId group_id, api::model::AgentGraph &agent_graph, const api::model::Behavior &behavior)

GroupId	groupId () const override

const api::model::Behavior &	behavior () override

void	add (api::model::Agent *) override

void	remove (api::model::Agent *) override

void	insert (api::model::AgentPtr *) override

void	erase (api::model::AgentPtr *) override

void	clear () override

scheduler::Job &	job () override

const scheduler::Job &	job () const override

api::scheduler::Job &	agentExecutionJob () override

const api::scheduler::Job &	agentExecutionJob () const override

std::vector< api::model::Agent * >	agents () const override

std::vector< api::model::Agent * >	localAgents () const override

std::vector< api::model::Agent * >	distantAgents () const override

void	addEventHandler (Event event, api::utils::Callback< api::model::Agent * > *callback) override

void	removeEventHandler (Event event, api::utils::Callback< api::model::Agent * > *callback) override

Additional Inherited Members
Public Types inherited from fpmas::api::model::AgentGroup
enum	Event { INSERT , ERASE , ADD , REMOVE }

Detailed Description

template<typename CellType>
class fpmas::model::MoveAgentGroup< CellType >

api::model::MoveAgentGroup implementation.

Constructor & Destructor Documentation

◆ MoveAgentGroup()

template<typename CellType >

fpmas::model::MoveAgentGroup< CellType >::MoveAgentGroup	(	api::model::GroupId	group_id,
		const api::model::Behavior &	behavior,
		api::model::SpatialModel< CellType > &	model,
		api::model::EndCondition< CellType > &	end_condition
	)

inline

MoveAgentGroup constructor.

The specified behavior is assumed to contain some SpatialAgent::moveTo() instructions. This is not required, but if it's not the case, the DistributedMoveAlgorithm will be systematically executed while it's useless.

Parameters

group_id	unique group id
behavior	behavior to execute on agents of the group
model	associated spatial model
end_condition	distributed move algorithm end condition

Member Function Documentation

◆ jobs()

template<typename CellType >

api::scheduler::JobList fpmas::model::MoveAgentGroup< CellType >::jobs

overridevirtual

Returns a JobList containing:

The execution of behavior on agents of the group, where SpatialAgent::moveTo() operations are potentially performed, including any necessary synchronization at the end of all behavior executions. Corresponds to the agentExecutionJob() in practice.
The execution of a DistributedMoveAlgorithm, according to the specified model, to commit the previous moveTo operations and update agents location, mobility fields and perceptions. The algorithm is executed only on agents contained in the group. However, notice that those agents' perceptions are still updated with any other agents located on model's cells, even if they are not included in this group.
