fpmas::model::SpatialAgent< AgentType, CellType, Derived > Class Template Reference

#include <spatial_model.h>

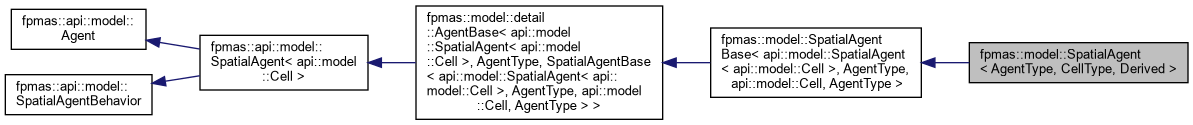

Inheritance diagram for fpmas::model::SpatialAgent< AgentType, CellType, Derived >:
Inheritance graph
[legend]
Collaboration diagram for fpmas::model::SpatialAgent< AgentType, CellType, Derived >:
Collaboration graph
[legend]

Protected Member Functions

void moveTo (CellType *cell) override

- Protected Member Functions inherited from fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >
void updateLocation (api::model::Cell *cell)

void handleNewMove () override

void handleNewPerceive () override

void moveTo (DistributedId id) override

Neighbors< api::model::Cell > mobilityField () const

Neighbors< NeighborType > perceptions () const

- Protected Member Functions inherited from fpmas::api::model::SpatialAgent< api::model::Cell >
virtual void moveTo (DistributedId id)=0

virtual void moveTo (Cell *cell)=0


Additional Inherited Members

- Public Types inherited from fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >
typedef SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType > JsonBase

- Public Types inherited from fpmas::model::detail::AgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType > >
typedef AgentType FinalAgentType

- Public Types inherited from fpmas::api::model::SpatialAgent< api::model::Cell >
typedef api::model::Cell Cell

- Public Member Functions inherited from fpmas::model::SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType >
void initLocation (api::model::Cell *cell) override

DistributedId locationId () const override

api::model::Cell * locationCell () const override

- Public Member Functions inherited from fpmas::model::detail::AgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType > >
 AgentBase ()=default

 AgentBase (const AgentBase &agent)=default

 AgentBase (AgentBase &&)=default

AgentBase & operator= (const AgentBase &agent)=default

AgentBase & operator= (AgentBase &&)

GroupId groupId () const override

std::vector< GroupId > groupIds () const override

void setGroupId (api::model::GroupId id) override

void addGroupId (api::model::GroupId id) override

void removeGroupId (api::model::GroupId id) override

api::model::AgentGroup * group () override

const api::model::AgentGroup * group () const override

std::vector< const api::model::AgentGroup * > groups () const override

std::vector< api::model::AgentGroup * > groups () override

void setGroup (api::model::AgentGroup *group) override

void addGroup (api::model::AgentGroup *group) override

void removeGroup (api::model::AgentGroup *group) override

void setGroupPos (api::model::GroupId gid, std::list< api::model::Agent * >::iterator pos) override

std::list< api::model::Agent * >::iterator getGroupPos (api::model::GroupId gid) const override

api::model::TypeId typeId () const override

api::model::Agent * copy () const override

void copyAssign (api::model::Agent *agent) override

void moveAssign (api::model::Agent *agent) override

api::model::AgentNode * node () override

const api::model::AgentNode * node () const override

void setNode (api::model::AgentNode *node) override

api::model::Model * model () override

const api::model::Model * model () const override

void setModel (api::model::Model *model) override

api::model::AgentTask * task () override

const api::model::AgentTask * task () const override

api::model::AgentTask * task (api::model::GroupId id) override

const api::model::AgentTask * task (api::model::GroupId id) const override

void setTask (api::model::AgentTask *task) override

void setTask (api::model::GroupId id, api::model::AgentTask *task) override

const std::unordered_map< api::model::GroupId, api::model::AgentTask * > & tasks () override

virtual void act () override

Neighbors< NeighborAgentType > outNeighbors () const

Neighbors< NeighborAgentType > outNeighbors (api::graph::LayerId layer) const

Neighbors< NeighborAgentType > inNeighbors () const

Neighbors< NeighborAgentType > inNeighbors (api::graph::LayerId layer) const

- Public Member Functions inherited from fpmas::api::model::SpatialAgent< api::model::Cell >
virtual DistributedId locationId () const=0

virtual api::model::Cell * locationCell () const=0

virtual void initLocation (Cell *cell)=0

virtual const Range< api::model::Cell > & mobilityRange () const=0

virtual const Range< api::model::Cell > & perceptionRange () const=0

- Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId groupId () const =0

virtual std::vector< GroupId > groupIds () const =0

virtual void setGroupId (GroupId id)=0

virtual void addGroupId (GroupId id)=0

virtual void removeGroupId (GroupId id)=0

virtual AgentGroup * group ()=0

virtual const AgentGroup * group () const =0

virtual std::vector< AgentGroup * > groups ()=0

virtual std::vector< const AgentGroup * > groups () const =0

virtual void setGroup (AgentGroup *group)=0

virtual void addGroup (AgentGroup *group)=0

virtual void removeGroup (AgentGroup *group)=0

virtual void setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0

virtual std::list< Agent * >::iterator getGroupPos (api::model::GroupId gid) const =0

virtual TypeId typeId () const =0

virtual Agent * copy () const =0

virtual void copyAssign (Agent *agent)=0

virtual void moveAssign (Agent *agent)=0

virtual AgentNode * node ()=0

virtual const AgentNode * node () const =0

virtual void setNode (AgentNode *node)=0

virtual Model * model ()=0

virtual const Model * model () const =0

virtual void setModel (Model *model)=0

virtual AgentTask * task ()=0

virtual const AgentTask * task () const =0

virtual void setTask (AgentTask *task)=0

virtual AgentTask * task (GroupId id)=0

virtual const AgentTask * task (GroupId id) const =0

virtual void setTask (GroupId id, AgentTask *task)=0

virtual const std::unordered_map< GroupId, AgentTask * > & tasks ()=0

virtual void act ()=0

virtual void handleNewMove ()=0

virtual void handleNewPerceive ()=0

- Static Public Attributes inherited from fpmas::model::detail::AgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, SpatialAgentBase< api::model::SpatialAgent< api::model::Cell >, AgentType, api::model::Cell, AgentType > >
static const api::model::TypeId TYPE_ID


Detailed Description

template<typename AgentType, typename CellType = api::model::Cell, typename Derived = AgentType>
class fpmas::model::SpatialAgent< AgentType, CellType, Derived >

SpatialAgent that can be used in an arbitrary graph environment.

Template Parameters
AgentTypefinal SpatialAgent type (i.e. most derived class from this SpatialAgent)
CellTypetype of cells on which the agent moves
Deriveddirect derived class, or at least the next class in the serialization chain

Member Function Documentation

◆ moveTo()

template<typename AgentType , typename CellType = api::model::Cell, typename Derived = AgentType>
void fpmas::model::SpatialAgent< AgentType, CellType, Derived >::moveTo ( CellType *  cell)
inlineoverrideprotected

Moves to the input Cell.

The input Cell is not required to be contained in the current mobility field of this SpatialAgent, what allows:

  1. To initialize the location of this SpatialAgent (since in this case, the mobility field is still empty)
  2. A SpatialAgent to move an other DISTANT SpatialAgent.

The execution of a DistributedMoveAlgorithm is required to commit the operation and update mobility fields and perceptions. However, this can be handled automatically on specific AgentGroups: see SpatialModel::buildMoveGroup().

More precisely, the current location, if defined, is unlinked, and so does the mobility field and perceptions, and a link from this SpatialAgent to cell is created on the NEW_LOCATION layer. In consequence, the behavior of locationCell() is undefined until a DistributedMoveAlgorithm is executed.

Notice that performing an other moveTo() operation before the previous is committed produces an undefined behavior.

Parameters
cellcell to which this SpatialAgent should move.
The documentation for this class was generated from the following file:
