#include <spatial_model.h>

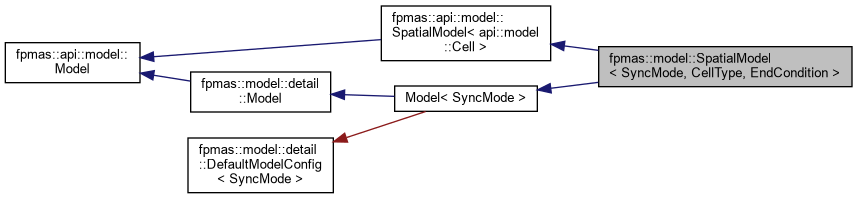

Inheritance diagram for fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >:

[legend]

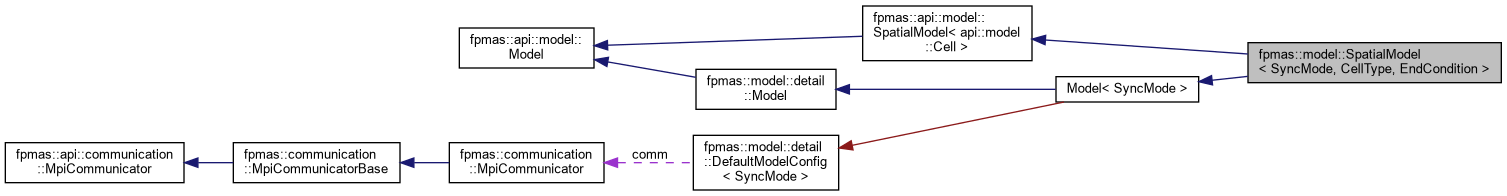

Collaboration diagram for fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >:

[legend]

Public Member Functions
void	add (CellType *cell) override

std::vector< CellType * >	cells () override

fpmas::api::model::AgentGroup &	cellGroup () override

const fpmas::api::model::AgentGroup &	cellGroup () const override

MoveAgentGroup< CellType > &	buildMoveGroup (api::model::GroupId id, const api::model::Behavior &behavior) override

Public Member Functions inherited from fpmas::api::model::SpatialModel< api::model::Cell >
virtual void	add (CellType *cell)=0

virtual std::vector< CellType * >	cells ()=0

virtual AgentGroup &	cellGroup ()=0

virtual const AgentGroup &	cellGroup () const=0

virtual MoveAgentGroup< CellType > &	buildMoveGroup (GroupId id, const Behavior &behavior)=0

virtual AgentGraph &	graph ()=0

virtual const AgentGraph &	graph () const =0

virtual api::scheduler::Scheduler &	scheduler ()=0

virtual const api::scheduler::Scheduler &	scheduler () const =0

virtual api::runtime::Runtime &	runtime ()=0

virtual const api::runtime::Runtime &	runtime () const =0

virtual const api::scheduler::Job &	loadBalancingJob () const =0

virtual AgentGroup &	buildGroup (GroupId id)=0

virtual AgentGroup &	buildGroup (GroupId id, const Behavior &behavior)=0

virtual void	removeGroup (AgentGroup &group)=0

virtual AgentGroup &	getGroup (GroupId id) const =0

virtual const std::unordered_map< GroupId, AgentGroup * > &	groups () const =0

virtual AgentEdge *	link (Agent src_agent, Agent tgt_agent, api::graph::LayerId layer)=0

virtual void	unlink (AgentEdge *edge)=0

virtual api::communication::MpiCommunicator &	getMpiCommunicator ()=0

virtual const api::communication::MpiCommunicator &	getMpiCommunicator () const =0

virtual void	clear ()=0

Public Member Functions inherited from fpmas::model::detail::DefaultModel< SyncMode >
	DefaultModel ()

	DefaultModel (api::graph::LoadBalancing< AgentPtr > &load_balancing)

	DefaultModel (api::scheduler::Scheduler &scheduler, api::runtime::Runtime &runtime, api::graph::LoadBalancing< AgentPtr > &load_balancing)

Public Member Functions inherited from fpmas::model::detail::Model
	Model (api::model::AgentGraph &graph, api::scheduler::Scheduler &scheduler, api::runtime::Runtime &runtime, api::model::LoadBalancing &load_balancing)

	Model (const Model &)=delete

	Model (Model &&)=delete

Model &	operator= (const Model &)=delete

Model &	operator= (Model &&)=delete

api::model::AgentGraph &	graph () override

const api::model::AgentGraph &	graph () const override

api::scheduler::Scheduler &	scheduler () override

const api::scheduler::Scheduler &	scheduler () const override

api::runtime::Runtime &	runtime () override

const api::runtime::Runtime &	runtime () const override

const scheduler::Job &	loadBalancingJob () const override

api::model::AgentGroup &	buildGroup (api::model::GroupId id) override

api::model::AgentGroup &	buildGroup (api::model::GroupId id, const api::model::Behavior &behavior) override

void	removeGroup (api::model::AgentGroup &group) override

api::model::AgentGroup &	getGroup (api::model::GroupId id) const override

const std::unordered_map< GroupId, api::model::AgentGroup * > &	groups () const override

AgentEdge *	link (api::model::Agent src_agent, api::model::Agent tgt_agent, api::graph::LayerId layer) override

void	unlink (api::model::AgentEdge *edge) override

api::communication::MpiCommunicator &	getMpiCommunicator () override

const api::communication::MpiCommunicator &	getMpiCommunicator () const override

void	clear () override

Additional Inherited Members
Public Types inherited from fpmas::api::model::SpatialModel< api::model::Cell >
typedef api::model::Cell	CellType

virtual void	insert (GroupId id, AgentGroup *group)=0

Protected Member Functions inherited from fpmas::model::detail::Model
void	insert (api::model::GroupId id, api::model::AgentGroup *group) override

Detailed Description

template<template< typename > class SyncMode, typename CellType = api::model::Cell, typename EndCondition = DynamicEndCondition<CellType>>
class fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >

api::model::SpatialModel implementation.

Template Parameters

SyncMode	Synchronization Mode (see fpmas::synchro)
CellType	Cell type on which SpatialAgents are moving. The specified type might be abstract.
EndCondition	DistributedMoveAlgorithm end condition. Uses DynamicEndCondition by default.

Member Function Documentation

◆ add()

template<template< typename > class SyncMode, typename CellType , typename EndCondition >

void fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >::add ( CellType * cell )

override

Adds a Cell to this model.

Cells added to the model constitute the "Cell network", on which SpatialAgents, added to groups created with buildMoveGroup(), will be able to move.

Parameters

cell	cell to add to the model

◆ cells()

template<template< typename > class SyncMode, typename CellType , typename EndCondition >

std::vector< CellType * > fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >::cells

overridevirtual

Returns the list of LOCAL cells on the current process.

Such Cells have necessarily been added to the model using add(), but might have migrate across processes during load-balancing operations.

Returns: local Cells list

Implements fpmas::api::model::SpatialModel< api::model::Cell >.

◆ cellGroup() [1/2]

template<template< typename > class SyncMode, typename CellType , typename EndCondition >

fpmas::api::model::AgentGroup & fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >::cellGroup

overridevirtual

Returns the AgentGroup containing all Cells in the current SpatialModel.

Returns: cell group

Implements fpmas::api::model::SpatialModel< api::model::Cell >.

◆ cellGroup() [2/2]

template<template< typename > class SyncMode, typename CellType , typename EndCondition >

const fpmas::api::model::AgentGroup & fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >::cellGroup

overridevirtual

Returns the AgentGroup containing all Cells in the current SpatialModel.

Returns: cell group

Implements fpmas::api::model::SpatialModel< api::model::Cell >.

◆ buildMoveGroup()

template<template< typename > class SyncMode, typename CellType , typename EndCondition >

MoveAgentGroup< CellType > & fpmas::model::SpatialModel< SyncMode, CellType, EndCondition >::buildMoveGroup	(	api::model::GroupId	id,
		const api::model::Behavior &	behavior
	)

overridevirtual

Builds an agent group that automatically includes the DistributedMoveAlgorithm execution.

The specified behavior is assumed to include some SpatialAgent::moveTo() operations, even if it's not required. Contrary to the Model::buildGroup() method, the returned group is such that in addition to the execution of the behavior for each agent of the group, the AgentGroup::jobs() list also includes the DistributedMoveAlgorithm::jobs() list, built properly from cells() in the model and agents contained in the AgentGroup.

Parameters

id	unique group id
behavior	agent behavior

Returns: an AgentGroup such that AgentGroup::jobs() is suitable for the execution and commitment of SpatialAgent::moveTo() operations

Implements fpmas::api::model::SpatialModel< api::model::Cell >.

The documentation for this class was generated from the following file:

src/fpmas/model/spatial/spatial_model.h
