fpmas::model::detail::Model Class Reference

#include <model.h>

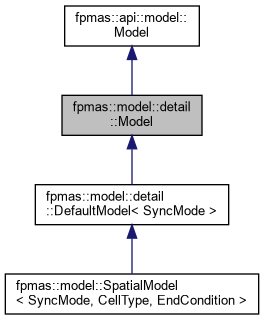

Inheritance diagram for fpmas::model::detail::Model:

Collaboration diagram for fpmas::model::detail::Model:

Public Member Functions
	Model (api::model::AgentGraph &graph, api::scheduler::Scheduler &scheduler, api::runtime::Runtime &runtime, api::model::LoadBalancing &load_balancing)
	Model (const Model &)=delete
	Model (Model &&)=delete
Model &	operator= (const Model &)=delete
Model &	operator= (Model &&)=delete
api::model::AgentGraph &	graph () override
const api::model::AgentGraph &	graph () const override
api::scheduler::Scheduler &	scheduler () override
const api::scheduler::Scheduler &	scheduler () const override
api::runtime::Runtime &	runtime () override
const api::runtime::Runtime &	runtime () const override
const scheduler::Job &	loadBalancingJob () const override
api::model::AgentGroup &	buildGroup (api::model::GroupId id) override
api::model::AgentGroup &	buildGroup (api::model::GroupId id, const api::model::Behavior &behavior) override
void	removeGroup (api::model::AgentGroup &group) override
api::model::AgentGroup &	getGroup (api::model::GroupId id) const override
const std::unordered_map< GroupId, api::model::AgentGroup * > &	groups () const override
AgentEdge *	link (api::model::Agent *src_agent, api::model::Agent *tgt_agent, api::graph::LayerId layer) override
void	unlink (api::model::AgentEdge *edge) override
api::communication::MpiCommunicator &	getMpiCommunicator () override
const api::communication::MpiCommunicator &	getMpiCommunicator () const override
void	clear () override
virtual AgentGraph &	graph ()=0
virtual const AgentGraph &	graph () const =0
virtual api::scheduler::Scheduler &	scheduler ()=0
virtual const api::scheduler::Scheduler &	scheduler () const =0
virtual api::runtime::Runtime &	runtime ()=0
virtual const api::runtime::Runtime &	runtime () const =0
virtual const api::scheduler::Job &	loadBalancingJob () const =0
virtual AgentGroup &	buildGroup (GroupId id)=0
virtual AgentGroup &	buildGroup (GroupId id, const Behavior &behavior)=0
virtual void	removeGroup (AgentGroup &group)=0
virtual AgentGroup &	getGroup (GroupId id) const =0
virtual const std::unordered_map< GroupId, AgentGroup * > &	groups () const =0
virtual AgentEdge *	link (Agent *src_agent, Agent *tgt_agent, api::graph::LayerId layer)=0
virtual void	unlink (AgentEdge *edge)=0
virtual api::communication::MpiCommunicator &	getMpiCommunicator ()=0
virtual const api::communication::MpiCommunicator &	getMpiCommunicator () const =0
virtual void	clear ()=0

Protected Member Functions
void	insert (api::model::GroupId id, api::model::AgentGroup *group) override
virtual void	insert (GroupId id, AgentGroup *group)=0

Detailed Description

api::model::Model implementation.

Constructor & Destructor Documentation

Model()

fpmas::model::detail::Model::Model	(	api::model::AgentGraph &	graph,
		api::scheduler::Scheduler &	scheduler,
		api::runtime::Runtime &	runtime,
		api::model::LoadBalancing &	load_balancing
	)

Model constructor.

Parameters

graph	simulation graph
scheduler	scheduler
runtime	runtime
load_balancing	load balancing algorithm

~Model()

fpmas::model::detail::Model::~Model ( )

virtual

Reimplemented from fpmas::api::model::Model.

Member Function Documentation

insert()

void fpmas::model::detail::Model::insert ( api::model::GroupId  id, api::model::AgentGroup *  group  )

overrideprotectedvirtual

Inserts an AgentGroup into this model.

Parameters

id	id of the group
group	agent group to insert

Implements fpmas::api::model::Model.

graph() [1/2]

api::model::AgentGraph & fpmas::model::detail::Model::graph ( )

inlineoverridevirtual

Model's AgentGraph.

Returns

agent graph

Implements fpmas::api::model::Model.

graph() [2/2]

const api::model::AgentGraph & fpmas::model::detail::Model::graph ( ) const

inlineoverridevirtual

Model's AgentGraph.

Returns

agent graph

Implements fpmas::api::model::Model.

scheduler() [1/2]

api::scheduler::Scheduler & fpmas::model::detail::Model::scheduler ( )

inlineoverridevirtual

Model's Scheduler.

Returns

scheduler

Implements fpmas::api::model::Model.

scheduler() [2/2]

const api::scheduler::Scheduler & fpmas::model::detail::Model::scheduler ( ) const

inlineoverridevirtual

Model's Scheduler.

Returns

scheduler

Implements fpmas::api::model::Model.

runtime() [1/2]

api::runtime::Runtime & fpmas::model::detail::Model::runtime ( )

inlineoverridevirtual

Model's Runtime, used to execute the scheduler().

Returns

runtime

Implements fpmas::api::model::Model.

runtime() [2/2]

const api::runtime::Runtime & fpmas::model::detail::Model::runtime ( ) const

inlineoverridevirtual

Model's Runtime, used to execute the scheduler().

Returns

runtime

Implements fpmas::api::model::Model.

loadBalancingJob()

const scheduler::Job & fpmas::model::detail::Model::loadBalancingJob ( ) const

inlineoverridevirtual

A predefined LoadBalancing Job.

This Job can be scheduled to define when and at which frequency the LoadBalancing algorithm (and the graph distribution) will be performed.

Example

// Schedules the LoadBalancing algorithm to be applied every 10
// iterations.
model.scheduler().schedule(0, 10, model.loadBalancingJob());

Returns

reference to the predefined load balancing job

Implements fpmas::api::model::Model.

buildGroup() [1/2]

api::model::AgentGroup & fpmas::model::detail::Model::buildGroup ( api::model::GroupId  id )

overridevirtual

Builds a new AgentGroup associated to this Model.

The user can add its own Agents to the built group, and schedule it so that Agents will be executed. More precisely, the default behavior defined by this group calls the Agent::act() method, that do nothing by default but can be overriden by the user. Other behaviors can be specified using the addGroup(GroupId, const Behavior&) method.

Notice that each AgentGroup is expected to be associated to a unique GroupId. The FPMAS_DEFINE_GROUPS() macro can be used to easily generate unique GroupIds.

Example

Assuming Agent1 and Agent2 are predefined user implemented Agents :

using fpmas::api::model::AgentGroup;

enum Groups : fpmas::api::model::GroupId {
    G_1, G_2
};

AgentGroup& group_1 = model.buildGroup(G_1);
AgentGroup& group_2 = model.buildGroup(G_2);

group_1.add(new Agent1);
group_1.add(new Agent1);

group_2.add(new Agent2);
// Different Agent types can be added
// to each group
group_2.add(new Agent1);

// Schedules Agents of group_1 to be executed each iteration
model.scheduler().schedule(0, 1, group_1.job());
// Schedules Agents of group_2 to be executed each 2 iterations
model.scheduler().schedule(0, 2, group_2.job());

Parameters

id	unique group id

Implements fpmas::api::model::Model.

buildGroup() [2/2]

api::model::AgentGroup & fpmas::model::detail::Model::buildGroup ( api::model::GroupId  id, const api::model::Behavior &  behavior  )

overridevirtual

Builds a new AgentGroup associated to this Model.

The user can add its own Agents to the built group, and schedule it so that Agents will be executed.

Jobs generated by the build AgentGroup will execute the specified behavior on agents contained in the group.

The behaviors storage duration must be greater or equal to this AgentGroup storage duration.

Each AgentGroup is expected to be associated to a unique GroupId. The FPMAS_DEFINE_GROUPS() macro can be used to easily generate unique GroupIds.

Parameters

id	unique group id
behavior	behavior to execute on agents of the group

Implements fpmas::api::model::Model.

removeGroup()

void fpmas::model::detail::Model::removeGroup ( api::model::AgentGroup &  group )

overridevirtual

Removes the specified group from the model.

All local agents are removed from group, and the group is deleted.

Parameters

group

group to remove from the model

Implements fpmas::api::model::Model.

getGroup()

fpmas::api::model::AgentGroup & fpmas::model::detail::Model::getGroup ( api::model::GroupId  id ) const

overridevirtual

Gets a reference to an AgentGroup previously created with buildGroup().

Behavior is undefined if the specified ID does not correspond to a previously built group.

Parameters

id

group id

Returns

associated agent group

Implements fpmas::api::model::Model.

groups()

const std::unordered_map< GroupId, api::model::AgentGroup * > & fpmas::model::detail::Model::groups ( ) const

inlineoverridevirtual

Returns the map of AgentGroups currently defined in the Model.

Returns

agent groups

Implements fpmas::api::model::Model.

link()

AgentEdge * fpmas::model::detail::Model::link ( api::model::Agent *  src_agent, api::model::Agent *  tgt_agent, api::graph::LayerId  layer  )

overridevirtual

Defines a new relation from src_agent to tgt_agent on the given layer, that can be interpreted as a relation type.

The FPMAS_DEFINE_LAYERS() macro can be used to easily generate LayerIds.

Parameters

src_agent	source agent
tgt_agent	target agent
layer	layer id

Implements fpmas::api::model::Model.

unlink()

void fpmas::model::detail::Model::unlink ( api::model::AgentEdge *  edge )

overridevirtual

Delete a previously defined agent relation, unlinking the corresponding edge.

Parameters

edge	edge to unlink

Implements fpmas::api::model::Model.

getMpiCommunicator() [1/2]

api::communication::MpiCommunicator & fpmas::model::detail::Model::getMpiCommunicator ( )

inlineoverridevirtual

Returns the MPI communicator used by this model.

Returns

MPI communicator

Implements fpmas::api::model::Model.

getMpiCommunicator() [2/2]

const api::communication::MpiCommunicator & fpmas::model::detail::Model::getMpiCommunicator ( ) const

inlineoverridevirtual

Returns the MPI communicator used by this model.

Returns

MPI communicator

Implements fpmas::api::model::Model.

clear()

void fpmas::model::detail::Model::clear ( )

inlineoverridevirtual

Erases all agents from the Model.

This is assumed to be performed by all the processes in the same epoch, even if the operation itself does not necessarily requires communications (since it is assumed that all agents are erased from any process anyway).

Implements fpmas::api::model::Model.

---

The documentation for this class was generated from the following files:

• src/fpmas/model/detail/model.h
• src/fpmas/model/detail/model.cpp
