MetaAgentBase Class Reference

#include <agent.h>

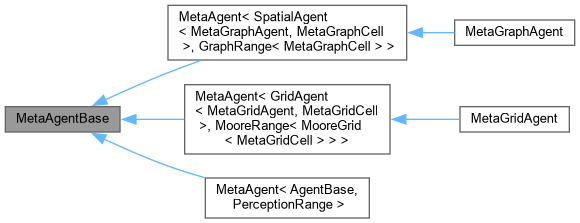

Inheritance diagram for MetaAgentBase:

Public Member Functions
bool	is_in_contacts (DistributedId id)
virtual const fpmas::api::model::AgentNode *	agentNode () const =0
	MetaAgentBase ()
	MetaAgentBase (const std::deque< DistributedId > &contacts)
const std::deque< DistributedId > &	contacts () const

Static Public Attributes
static std::size_t	max_contacts
static std::size_t	range_size
static float	contact_weight
static MovePolicy	move_policy

Protected Member Functions
std::deque< DistributedId > &	contacts ()

Detailed Description

A generic MetaAgent class, that defines features common for both MetaGridAgents and MetaGraphAgents.

If config.agent_interactions is set to CONTACTS in the MetaModel configuration, all agents maintain a contact list with which a link is kept, allowing agents in contact to interact even if they are geographically distant.

Constructor & Destructor Documentation

MetaAgentBase() [1/2]

MetaAgentBase::MetaAgentBase ( )

inline

MetaAgentBase default constructor. The contacts list is initialized empty.

MetaAgentBase() [2/2]

MetaAgentBase::MetaAgentBase ( const std::deque< DistributedId > &  contacts )

inline

MetaAgentBase constructor.

Parameters

contacts

Initial list of contacts

Member Function Documentation

contacts() [1/2]

std::deque< DistributedId > & MetaAgentBase::contacts ( )

protected

Non-const contacts() access, that can only be used internally during agent behaviors.

is_in_contacts()

bool MetaAgentBase::is_in_contacts

(

DistributedId

id

)

Checks if the agent corresponding to id is currently in the contacts list of this agent.

This method can safely be called on a DISTANT agent after a read operation.

agentNode()

virtual const fpmas::api::model::AgentNode * MetaAgentBase::agentNode ( ) const

pure virtual

Returns a pointer to the node containing the agent.

Implemented in MetaAgent< AgentBase, PerceptionRange >, MetaAgent< SpatialAgent< MetaGraphAgent, MetaGraphCell >, GraphRange< MetaGraphCell > >, and MetaAgent< GridAgent< MetaGridAgent, MetaGridCell >, MooreRange< MooreGrid< MetaGridCell > > >.

contacts() [2/2]

const std::deque< DistributedId > & MetaAgentBase::contacts

(

)

const

Current contacts of the agent.

Member Data Documentation

max_contacts

std::size_t MetaAgentBase::max_contacts

static

Maximum number of contacts.

range_size

std::size_t MetaAgentBase::range_size

static

Perception and mobility range size. Currently, only a range size of 1 is supported for generic graph based spatial models, but can be set to arbitrary positive values for grid environments.

contact_weight

float MetaAgentBase::contact_weight

static

Weight of edges between contacts.

move_policy

MovePolicy MetaAgentBase::move_policy

static

The MovePolicy used to chose where all agents need to move at each time step.

---

The documentation for this class was generated from the following file:

• include/agent.h
