config.h File Reference

#include "yaml-cpp/yaml.h"
#include "fpmas/api/scheduler/scheduler.h"
#include "fpmas/api/model/spatial/grid.h"
#include "fpmas/utils/macros.h"

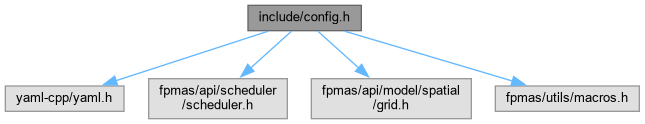

Include dependency graph for config.h:

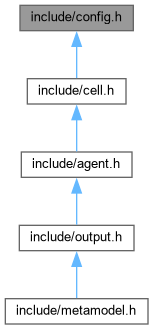

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Attractor
struct	GridAttractor
struct	TestCaseConfig
struct	GraphConfig
struct	ModelConfig

Macros
#define	AGENT_GROUP   MOVE_GROUP

Enumerations
enum class	Environment { GRID , RANDOM , CLUSTERED , SMALL_WORLD }
enum class	Utility { UNIFORM , LINEAR , INVERSE , STEP }
enum class	MovePolicy { RANDOM , MAX }
enum class	LbAlgorithm {   SCHEDULED_LB , ZOLTAN_LB , GRID_LB , ZOLTAN_CELL_LB ,   STATIC_ZOLTAN_CELL_LB , RANDOM_LB }
enum class	AgentInteractions { LOCAL , CONTACTS }
enum class	Interactions {   NONE , READ_ALL , READ_ONE , WRITE_ALL ,   WRITE_ONE , READ_ALL_WRITE_ONE , READ_ALL_WRITE_ALL }
enum class	SyncMode { GHOST_MODE , GLOBAL_GHOST_MODE , HARD_SYNC_MODE }

Functions
	FPMAS_DEFINE_GROUPS (RELATIONS_FROM_NEIGHBORS_GROUP, RELATIONS_FROM_CONTACTS_GROUP, HANDLE_NEW_CONTACTS_GROUP, MOVE_GROUP, UPDATE_CELL_EDGE_WEIGHTS_GROUP, CELL_GROUP)
	FPMAS_DEFINE_LAYERS (CONTACT, NEW_CONTACT)

Detailed Description

Configuration features.

Macro Definition Documentation

AGENT_GROUP

#define AGENT_GROUP   MOVE_GROUP

MOVE_GROUP alias, since all SpatialAgents and only them are contained in the MOVE_GROUP AgentGroup.

Enumeration Type Documentation

Environment

enum class Environment

strong

Environment type.

Enumerator
GRID	A regular grid. See also MooreGridBuilder
RANDOM	An uniform random graph. See also UniformGraphBuilder
CLUSTERED	A random graph with a high clustering coefficient. See also ClusteredGraphBuilder
SMALL_WORLD	A Small-World graph. See also SmallWorldGraphBuilder

Utility

enum class Utility

strong

Shape of utility of Cells. Currently only available for Environment::GRID.

Enumerator
UNIFORM	All cells have the same utility. See also UniformUtility
LINEAR	Utility decreases linearly from the center of attraction to the radius. See also LinearUtility
INVERSE	Utility decreases from the center of attraction according to an inverse function. See also InverseUtility
STEP	A high uniform step until radius, and then decreases using an inverse function. See also StepUtility

MovePolicy

enum class MovePolicy

strong

Agents move policy.

Enumerator
RANDOM	Go to a random cell, with a random distribution consistent with utilities of cells. See also RandomMovePolicy
MAX	Go to the cell with the maximum utility. See also MaxMovePolicy

LbAlgorithm

enum class LbAlgorithm

strong

Load balancing algorithms.

Enumerator
SCHEDULED_LB	A load balancing algorithm that applies Zoltan, taking into account the agent scheduling. Very costly and not efficient. See also ScheduledLoadBalancing
ZOLTAN_LB	Raw Zoltan load balancing. See also ZoltanLoadBalancing
GRID_LB	Grid based load balancing. See also GridLoadBalancing
ZOLTAN_CELL_LB	Zoltan applied only to the cell network, and agent assigned to the same process as their location. The Zoltan load balancing is applied to the cell network at each iteration. See also CellLoadBalancing
STATIC_ZOLTAN_CELL_LB	Same as ZOLTAN_CELL_LB, but the Zoltan algorithm is only applied to the cell network the first time the algorithm is applied. See also StaticCellLoadBalancing
RANDOM_LB	Completely random load balancing. Not recommended. See also RandomLoadBalancing

AgentInteractions

enum class AgentInteractions

strong

Defines the agent interactions graph.

Enumerator
LOCAL	Agents only interact with agents in their geographical perception field.
CONTACTS	Same as LOCAL, but also maintains a list of distant contacts. See also MetaAgent

Interactions

enum class Interactions

strong

Agent interactions scheme.

Note that write operations can be handled properly only with SyncMode::HARD_SYNC_MODE.

Enumerator
NONE	No interaction.
READ_ALL	Performs a read on all neighbors.
READ_ONE	Performs a read on a randomly selected neighbor.
WRITE_ALL	Performs a write on all neighbors.
WRITE_ONE	Performs a write on a randomly selected neighbor.
READ_ALL_WRITE_ONE	Performs a read on all neighbors, and then performs a write on a randomly selected neighbor.
READ_ALL_WRITE_ALL	Performs a read on all neighbors, and then performs a write on all neighbors.

SyncMode

enum class SyncMode

strong

Synchronization modes.

Enumerator
GHOST_MODE	Distant agents are read from a ghost copy. No write. See also GhostMode
GLOBAL_GHOST_MODE	All agents are read from a ghost copy. No write. See also GlobalGhostMode
HARD_SYNC_MODE	Agents are read and written directly from distant processes, allowing concurrent read and write operations. See also HardSyncModeWithGhostLink

Function Documentation

FPMAS_DEFINE_GROUPS()

FPMAS_DEFINE_GROUPS	(	RELATIONS_FROM_NEIGHBORS_GROUP	,
		RELATIONS_FROM_CONTACTS_GROUP	,
		HANDLE_NEW_CONTACTS_GROUP	,
		MOVE_GROUP	,
		UPDATE_CELL_EDGE_WEIGHTS_GROUP	,
		CELL_GROUP
	)

Defines AgentGroup ids used internally by the MetaModel.

FPMAS_DEFINE_LAYERS()

FPMAS_DEFINE_LAYERS	(	CONTACT	,
		NEW_CONTACT
	)

Defines layer ids used internally by the MetaModel.
