fpmas::api::model::GridAgent< GridCellType > Class Template Reference

#include <grid.h>

Inheritance diagram for fpmas::api::model::GridAgent< GridCellType >:

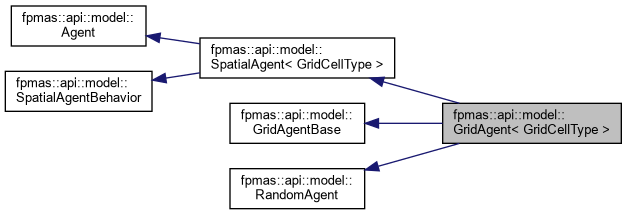

Collaboration diagram for fpmas::api::model::GridAgent< GridCellType >:

Protected Member Functions
virtual void	moveTo (DiscretePoint point)=0
Protected Member Functions inherited from fpmas::api::model::SpatialAgent< GridCellType >
virtual void	moveTo (DistributedId id)=0
virtual void	moveTo (Cell *cell)=0
virtual void	moveTo (DiscretePoint point)=0

Additional Inherited Members
Public Types inherited from fpmas::api::model::SpatialAgent< GridCellType >
typedef GridCellType	Cell
Public Member Functions inherited from fpmas::api::model::SpatialAgent< GridCellType >
virtual DistributedId	locationId () const=0
virtual GridCellType *	locationCell () const=0
virtual void	initLocation (Cell *cell)=0
virtual const Range< GridCellType > &	mobilityRange () const=0
virtual const Range< GridCellType > &	perceptionRange () const=0
Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0
virtual std::vector< GroupId >	groupIds () const =0
virtual void	setGroupId (GroupId id)=0
virtual void	addGroupId (GroupId id)=0
virtual void	removeGroupId (GroupId id)=0
virtual AgentGroup *	group ()=0
virtual const AgentGroup *	group () const =0
virtual std::vector< AgentGroup * >	groups ()=0
virtual std::vector< const AgentGroup * >	groups () const =0
virtual void	setGroup (AgentGroup *group)=0
virtual void	addGroup (AgentGroup *group)=0
virtual void	removeGroup (AgentGroup *group)=0
virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0
virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0
virtual TypeId	typeId () const =0
virtual Agent *	copy () const =0
virtual void	copyAssign (Agent *agent)=0
virtual void	moveAssign (Agent *agent)=0
virtual AgentNode *	node ()=0
virtual const AgentNode *	node () const =0
virtual void	setNode (AgentNode *node)=0
virtual Model *	model ()=0
virtual const Model *	model () const =0
virtual void	setModel (Model *model)=0
virtual AgentTask *	task ()=0
virtual const AgentTask *	task () const =0
virtual void	setTask (AgentTask *task)=0
virtual AgentTask *	task (GroupId id)=0
virtual const AgentTask *	task (GroupId id) const =0
virtual void	setTask (GroupId id, AgentTask *task)=0
virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0
virtual void	act ()=0
Public Member Functions inherited from fpmas::api::model::SpatialAgentBehavior
virtual void	handleNewMove ()=0
virtual void	handleNewPerceive ()=0
Public Member Functions inherited from fpmas::api::model::GridAgentBase
virtual DiscretePoint	locationPoint () const =0
Public Member Functions inherited from fpmas::api::model::RandomAgent
virtual api::random::Generator< std::FPMAS_AGENT_RNG::result_type > &	rd ()=0
virtual void	seed (std::FPMAS_AGENT_RNG::result_type seed)=0

Detailed Description

template<typename GridCellType>
class fpmas::api::model::GridAgent< GridCellType >

SpatialAgent API extension to represent agents moving on a Grid.

The GridAgent notably provides methods to move or locate the agent using DiscretePoint coordinates.

The specified GridCellType is required to extend GridCell.

Member Function Documentation

moveTo()

template<typename GridCellType >

virtual void fpmas::api::model::GridAgentBase::moveTo ( DiscretePoint  point )

protectedvirtual

Moves to the Cell at the specified point.

Notice that it is assumed that at most one GridCell can be located at each point.

If no Cell at point can be found in the current mobility field, an OutOfMobilityFieldException is thrown.

Parameters

point

discrete coordinates

Exceptions

OutOfMobilityFieldException

Implements fpmas::api::model::GridAgentBase.

---

The documentation for this class was generated from the following file:

• src/fpmas/api/model/spatial/grid.h
