#include <distributed_graph.h>

Inheritance diagram for fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >:

[legend]

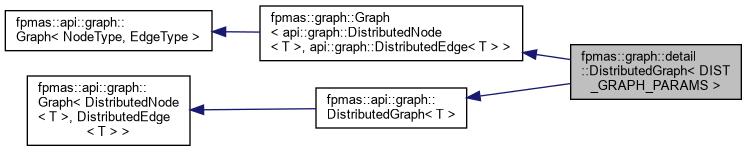

Collaboration diagram for fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >:

[legend]

Public Types
typedef api::graph::DistributedNode< T >	NodeType

typedef api::graph::DistributedEdge< T >	EdgeType

Public Types inherited from fpmas::api::graph::Graph< NodeType, EdgeType >
typedef NodeType::IdType	NodeIdType

typedef EdgeType::IdType	EdgeIdType

typedef fpmas::api::graph::IdHash< typename NodeType::IdType >	NodeIdHash

typedef fpmas::api::graph::IdHash< typename EdgeType::IdType >	EdgeIdHash

typedef std::unordered_map< NodeIdType, NodeType *, NodeIdHash >	NodeMap

typedef std::unordered_map< EdgeIdType, EdgeType *, EdgeIdHash >	EdgeMap

Public Types inherited from fpmas::api::graph::DistributedGraph< T >
typedef api::utils::EventCallback< SetLocalNodeEvent< T > >	SetLocalNodeCallback

typedef api::utils::EventCallback< SetDistantNodeEvent< T > >	SetDistantNodeCallback

Public Types inherited from fpmas::api::graph::Graph< DistributedNode< T >, DistributedEdge< T > >
typedef NodeType::IdType	NodeIdType

typedef EdgeType::IdType	EdgeIdType

typedef fpmas::api::graph::IdHash< typename NodeType::IdType >	NodeIdHash

typedef fpmas::api::graph::IdHash< typename EdgeType::IdType >	EdgeIdHash

typedef std::unordered_map< NodeIdType, DistributedNode< T > *, NodeIdHash >	NodeMap

typedef std::unordered_map< EdgeIdType, DistributedEdge< T > *, EdgeIdHash >	EdgeMap

Public Member Functions
	DistributedGraph (const DistributedGraph< DIST_GRAPH_PARAMS_SPEC > &)=delete

DistributedGraph &	operator= (const DistributedGraph< DIST_GRAPH_PARAMS_SPEC > &)=delete

	DistributedGraph (DistributedGraph< DIST_GRAPH_PARAMS_SPEC > &&graph)

DistributedGraph &	operator= (DistributedGraph< DIST_GRAPH_PARAMS_SPEC > &&graph)

	DistributedGraph (api::communication::MpiCommunicator &comm)

api::communication::MpiCommunicator &	getMpiCommunicator () override

const api::communication::MpiCommunicator &	getMpiCommunicator () const override

DistributedId	currentNodeId () const override

void	setCurrentNodeId (DistributedId id) override

DistributedId	currentEdgeId () const override

void	setCurrentEdgeId (DistributedId id) override

NodeType *	importNode (NodeType *node) override

EdgeType *	importEdge (EdgeType *edge) override

std::unordered_set< api::graph::DistributedNode< T > * >	getUnsyncNodes () const override

const SyncMode< T > &	getSyncMode () const

SyncMode< T > &	synchronizationMode () override

const LocationManagerImpl< T > &	getLocationManager () const override

LocationManagerImpl< T > &	getLocationManager () override

void	balance (api::graph::LoadBalancing< T > &load_balancing) override

void	balance (api::graph::LoadBalancing< T > &load_balancing, api::graph::PartitionMode partition_mode) override

void	balance (api::graph::FixedVerticesLoadBalancing< T > &load_balancing, api::graph::PartitionMap fixed_vertices) override

void	balance (api::graph::FixedVerticesLoadBalancing< T > &load_balancing, api::graph::PartitionMap fixed_vertices, api::graph::PartitionMode partition_mode) override

void	distribute (api::graph::PartitionMap partition) override

void	synchronize () override

void	synchronize (std::unordered_set< NodeType * > nodes, bool synchronize_links=true) override

NodeType *	buildNode (T &&=std::move(T())) override

NodeType *	buildNode (const T &) override

api::graph::DistributedNode< T > *	insertDistant (api::graph::DistributedNode< T > *) override

EdgeType *	link (NodeType const src, NodeType const tgt, api::graph::LayerId layer) override

void	removeNode (api::graph::DistributedNode< T > *) override

void	removeNode (DistributedId id) override

void	unlink (EdgeType *) override

void	unlink (DistributedId id) override

void	switchLayer (EdgeType *edge, api::graph::LayerId layer_id) override

void	addCallOnSetLocal (SetLocalNodeCallback *callback) override

std::vector< SetLocalNodeCallback * >	onSetLocalCallbacks () const override

void	addCallOnSetDistant (SetDistantNodeCallback *callback) override

std::vector< SetDistantNodeCallback * >	onSetDistantCallbacks () const override

Public Member Functions inherited from fpmas::api::graph::Graph< NodeType, EdgeType >
virtual void	insert (NodeType *node)=0

virtual void	insert (EdgeType *edge)=0

virtual void	erase (NodeType *node)=0

virtual void	erase (EdgeType *edge)=0

virtual void	addCallOnInsertNode (api::utils::Callback< NodeType * > *callback)=0

virtual std::vector< api::utils::Callback< NodeType * > * >	onInsertNodeCallbacks () const =0

virtual void	addCallOnEraseNode (api::utils::Callback< NodeType * > *callback)=0

virtual std::vector< api::utils::Callback< NodeType * > * >	onEraseNodeCallbacks () const =0

virtual void	addCallOnInsertEdge (api::utils::Callback< EdgeType * > *callback)=0

virtual std::vector< api::utils::Callback< EdgeType * > * >	onInsertEdgeCallbacks () const =0

virtual void	addCallOnEraseEdge (api::utils::Callback< EdgeType * > *callback)=0

virtual std::vector< api::utils::Callback< EdgeType * > * >	onEraseEdgeCallbacks () const =0

virtual NodeType *	getNode (NodeIdType id)=0

virtual const NodeType *	getNode (NodeIdType id) const =0

virtual const NodeMap &	getNodes () const =0

virtual EdgeType *	getEdge (EdgeIdType id)=0

virtual const EdgeType *	getEdge (EdgeIdType) const =0

virtual const EdgeMap &	getEdges () const =0

virtual void	clear ()=0

virtual api::communication::MpiCommunicator &	getMpiCommunicator ()=0

virtual const api::communication::MpiCommunicator &	getMpiCommunicator () const =0

virtual LocationManager< T > &	getLocationManager ()=0

virtual const LocationManager< T > &	getLocationManager () const =0

virtual DistributedNode< T > *	importNode (DistributedNode< T > *node)=0

virtual DistributedEdge< T > *	importEdge (DistributedEdge< T > *edge)=0

virtual std::unordered_set< DistributedNode< T > * >	getUnsyncNodes () const =0

virtual DistributedId	currentNodeId () const =0

virtual void	setCurrentNodeId (DistributedId id)=0

virtual DistributedId	currentEdgeId () const =0

virtual void	setCurrentEdgeId (DistributedId id)=0

virtual DistributedNode< T > *	buildNode (T &&data)=0

virtual DistributedNode< T > *	buildNode (const T &data)=0

virtual DistributedNode< T > *	insertDistant (DistributedNode< T > *node)=0

virtual void	removeNode (DistributedNode< T > *node)=0

virtual void	removeNode (DistributedId id)=0

virtual void	unlink (DistributedEdge< T > *edge)=0

virtual void	unlink (DistributedId id)=0

virtual DistributedEdge< T > *	link (DistributedNode< T > source, DistributedNode< T > target, LayerId layer_id)=0

virtual void	switchLayer (DistributedEdge< T > *edge, LayerId layer_id)=0

virtual void	addCallOnSetLocal (SetLocalNodeCallback *callback)=0

virtual std::vector< SetLocalNodeCallback * >	onSetLocalCallbacks () const =0

virtual void	addCallOnSetDistant (SetDistantNodeCallback *callback)=0

virtual std::vector< SetDistantNodeCallback * >	onSetDistantCallbacks () const =0

virtual void	balance (LoadBalancing< T > &lb)=0

virtual void	balance (LoadBalancing< T > &lb, PartitionMode partition_mode)=0

virtual void	balance (FixedVerticesLoadBalancing< T > &lb, PartitionMap fixed_vertices)=0

virtual void	balance (FixedVerticesLoadBalancing< T > &lb, PartitionMap fixed_vertices, PartitionMode partition_mode)=0

virtual void	distribute (PartitionMap partition)=0

virtual void	synchronize ()=0

virtual void	synchronize (std::unordered_set< DistributedNode< T > * > nodes, bool synchronize_links=true)=0

virtual synchro::SyncMode< T > &	synchronizationMode ()=0

Public Member Functions inherited from fpmas::api::graph::Graph< DistributedNode< T >, DistributedEdge< T > >
virtual void	insert (DistributedNode< T > *node)=0

virtual void	insert (DistributedEdge< T > *edge)=0

virtual void	erase (DistributedNode< T > *node)=0

virtual void	erase (DistributedEdge< T > *edge)=0

virtual void	addCallOnInsertNode (api::utils::Callback< DistributedNode< T > * > *callback)=0

virtual std::vector< api::utils::Callback< DistributedNode< T > * > * >	onInsertNodeCallbacks () const=0

virtual void	addCallOnEraseNode (api::utils::Callback< DistributedNode< T > * > *callback)=0

virtual std::vector< api::utils::Callback< DistributedNode< T > * > * >	onEraseNodeCallbacks () const=0

virtual void	addCallOnInsertEdge (api::utils::Callback< DistributedEdge< T > * > *callback)=0

virtual std::vector< api::utils::Callback< DistributedEdge< T > * > * >	onInsertEdgeCallbacks () const=0

virtual void	addCallOnEraseEdge (api::utils::Callback< DistributedEdge< T > * > *callback)=0

virtual std::vector< api::utils::Callback< DistributedEdge< T > * > * >	onEraseEdgeCallbacks () const=0

virtual DistributedNode< T > *	getNode (NodeIdType id)=0

virtual const DistributedNode< T > *	getNode (NodeIdType id) const=0

virtual const NodeMap &	getNodes () const=0

virtual DistributedEdge< T > *	getEdge (EdgeIdType id)=0

virtual const DistributedEdge< T > *	getEdge (EdgeIdType) const=0

virtual const EdgeMap &	getEdges () const=0

virtual void	clear ()=0

Detailed Description

template<DIST_GRAPH_PARAMS>
class fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >

api::graph::DistributedGraph implementation.

Member Typedef Documentation

◆ NodeType

template<DIST_GRAPH_PARAMS >

typedef api::graph::DistributedNode<T> fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::NodeType

DistributedNode API.

◆ EdgeType

template<DIST_GRAPH_PARAMS >

typedef api::graph::DistributedEdge<T> fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::EdgeType

DistributedEdge API.

Constructor & Destructor Documentation

◆ DistributedGraph() [1/2]

template<DIST_GRAPH_PARAMS >

fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::DistributedGraph ( DistributedGraph< DIST_GRAPH_PARAMS_SPEC > && graph )

DistributedGraph move constructor.

◆ DistributedGraph() [2/2]

template<DIST_GRAPH_PARAMS >

fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::DistributedGraph ( api::communication::MpiCommunicator & comm )

inline

DistributedGraph constructor.

Parameters

comm	MPI communicator

Member Function Documentation

◆ operator=()

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC > & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::operator= ( DistributedGraph< DIST_GRAPH_PARAMS_SPEC > && graph )

DistributedGraph move assignment operator.

◆ getMpiCommunicator() [1/2]

template<DIST_GRAPH_PARAMS >

api::communication::MpiCommunicator & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getMpiCommunicator ( )

inlineoverridevirtual

Returns the internal MpiCommunicator.

Returns: reference to the internal MpiCommunicator

Implements fpmas::api::graph::DistributedGraph< T >.

◆ getMpiCommunicator() [2/2]

template<DIST_GRAPH_PARAMS >

const api::communication::MpiCommunicator & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getMpiCommunicator ( ) const

inlineoverridevirtual

Returns the internal MpiCommunicator.

Returns: reference to the internal MpiCommunicator

Implements fpmas::api::graph::DistributedGraph< T >.

◆ currentNodeId()

template<DIST_GRAPH_PARAMS >

DistributedId fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::currentNodeId ( ) const

inlineoverridevirtual

Returns the current internal Node ID.

The next node built with buildNode() will have an id equal to currentNodeId()++;

Returns: current Node ID

Implements fpmas::api::graph::DistributedGraph< T >.

◆ setCurrentNodeId()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::setCurrentNodeId ( DistributedId id )

inlineoverridevirtual

Sets the current internal Node ID to the specified value.

Parameters

id node id

Implements fpmas::api::graph::DistributedGraph< T >.

◆ currentEdgeId()

template<DIST_GRAPH_PARAMS >

DistributedId fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::currentEdgeId ( ) const

inlineoverridevirtual

Returns the current internal Edge ID.

The next edge built with link() will have an id equal to currentEdgeId()++;

Returns: current Edge ID

Implements fpmas::api::graph::DistributedGraph< T >.

◆ setCurrentEdgeId()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::setCurrentEdgeId ( DistributedId id )

inlineoverridevirtual

Sets the current internal Edge ID to the specified value.

Parameters

id edge id

Implements fpmas::api::graph::DistributedGraph< T >.

◆ importNode()

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC >::NodeType * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::importNode ( NodeType * node )

overridevirtual

Imports a DistributedNode into the local graph instance.

When a node is imported into the graph, two main events occur :

the node is inserted into the graph, triggering insert node callbacks, as specified in Graph::insert(NodeType*).
the node becomes *LOCAL* to this graph, replacing an eventual outdated *DISTANT* representation of this node.

Finally, the inserted node is returned.

Parameters

node	node to import

Returns: inserted node

Implements fpmas::api::graph::DistributedGraph< T >.

◆ importEdge()

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC >::EdgeType * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::importEdge ( EdgeType * edge )

overridevirtual

Imports a DistributedEdge into the local graph instance.

The DistributedEdge must comply with the following requirements:

dynamically allocated
defined getTempSourceNode() and getTempTargetNode()

Moreover, at least the source or the target node of the imported edge must represent a LOCAL node (since edges between two DISTANT nodes are not represented in a DistributedGraph anyway).

Several situations might then occur :

source and target nodes are LOCAL, then edge is LOCAL
source is LOCAL and target is DISTANT, then edge is DISTANT
target is LOCAL and source is DISTANT, then edge is DISTANT

When source or target is DISTANT, the corresponding node might already be represented in the local graph instance. In that case, the imported edge is linked to the existing representation, and the corresponding TemporaryNode is discarded (without a call to the TemporaryNode::build() method).

Else, if no DISTANT representation of the node is available, a DISTANT representation is created into the local graph instance and the edge is linked to this new DISTANT node, built using the TemporaryNode::build() method.

Notice that a DISTANT representation of the imported edge might already exist, notably if the two nodes are LOCAL and at least one of them was imported in the current distribute() operation. In that case, the imported edge can be discarded and the edge already contained in the graph goes LOCAL, without calling insert edge callbacks. Source and target TemporaryNodes are also be discarded.

Parameters

edge to import

Returns: inserted edge

Implements fpmas::api::graph::DistributedGraph< T >.

◆ getUnsyncNodes()

template<DIST_GRAPH_PARAMS >

std::unordered_set< api::graph::DistributedNode< T > * > fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getUnsyncNodes ( ) const

inlineoverridevirtual

Returns a buffer containing nodes that have not been synchronized yet using the getDataSync() component.

This set corresponds to nodes that were created while importing an importEdge() or insertDistant() statement.

Nodes are added to the buffer when importEdge() or insertDistant() is called, each node is removed under two conditions:

When its data is synchronized with a call to getDataSync().synchronize() or getDataSync().synchronize(node_set), that are themselves called by synchronize() and synchronize(std::unordered_set nodes).
When it is erased from the graph

Notice that what is called "data synchronization" there is still dependent on the current SyncMode: this does not necessarily mean message exchanges or data import.

Returns: unsynchronized nodes buffer

Implements fpmas::api::graph::DistributedGraph< T >.

◆ getSyncMode()

template<DIST_GRAPH_PARAMS >

const SyncMode< T > & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getSyncMode ( ) const

inline

Deprecated:: Use synchronizationMode() instead.

Returns the internal SyncMode instance.

Returns: sync mode

◆ synchronizationMode()

template<DIST_GRAPH_PARAMS >

SyncMode< T > & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::synchronizationMode ( )

inlineoverridevirtual

Returns the current synchro::SyncMode instance used to synchronize() the graph.

Directly accessing synchronizationMode().getSyncLinker().synchronize() or synchronizationMode().getDataSync().synchronize() can be used to perform corresponding partial synchronizations (contrary to synchronize()) for performance purpose.

Implements fpmas::api::graph::DistributedGraph< T >.

◆ getLocationManager() [1/2]

template<DIST_GRAPH_PARAMS >

const LocationManagerImpl< T > & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getLocationManager ( ) const

inlineoverridevirtual

Reference to the internal LocationManager.

The LocationManager is notably used to easily access the LOCAL and DISTANT nodes in independent sets, thanks to the LocationManager::getLocalNodes() and LocationManager::getDistantNodes() functions.

Returns: internal LocationManager

Implements fpmas::api::graph::DistributedGraph< T >.

◆ getLocationManager() [2/2]

template<DIST_GRAPH_PARAMS >

LocationManagerImpl< T > & fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::getLocationManager ( )

inlineoverridevirtual

Reference to the internal LocationManager.

The LocationManager is notably used to easily access the LOCAL and DISTANT nodes in independent sets, thanks to the LocationManager::getLocalNodes() and LocationManager::getDistantNodes() functions.

Returns: internal LocationManager

Implements fpmas::api::graph::DistributedGraph< T >.

◆ balance() [1/4]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::balance ( api::graph::LoadBalancing< T > & lb )

inlineoverridevirtual

Deprecated:: Deprecated in favor of balance(LoadBalancing<T>&, PartitionMode)

Implements fpmas::api::graph::DistributedGraph< T >.

◆ balance() [2/4]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::balance	(	api::graph::LoadBalancing< T > &	lb,
		api::graph::PartitionMode	partition_mode
	)

inlineoverridevirtual

Balances the graph across processors using the specified load balancing algorithm and partitioning strategy.

This function act as a synchronization barrier, so all the process must enter this function to ensure progress.

Parameters

lb	load balancing algorithm
partition_mode	partitioning strategy

Implements fpmas::api::graph::DistributedGraph< T >.

◆ balance() [3/4]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::balance	(	api::graph::FixedVerticesLoadBalancing< T > &	lb,
		api::graph::PartitionMap	fixed_vertices
	)

inlineoverridevirtual

Deprecated:: Deprecated in favor of balance(FixedVerticesLoadBalancing<T>&, PartitionMap, PartitionMode)

Implements fpmas::api::graph::DistributedGraph< T >.

◆ balance() [4/4]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::balance	(	api::graph::FixedVerticesLoadBalancing< T > &	lb,
		api::graph::PartitionMap	fixed_vertices,
		api::graph::PartitionMode	partition_mode
	)

inlineoverridevirtual

Balances the graph using the specified load balancing algorithm with fixed vertices support.

This function act as a synchronization barrier, so all the process must enter this function to ensure progress.

Parameters

lb	load balancing algorithm
fixed_vertices	fixed vertices map
partition_mode	partitioning strategy

Implements fpmas::api::graph::DistributedGraph< T >.

◆ distribute()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::distribute ( api::graph::PartitionMap partition )

overridevirtual

Distributes the Graph across processors according to the specified partition.

The partition describes nodes to export. In consequence, entries specified for nodes that are not LOCAL to this graph are ignored.

The partition is specified as a {node_id, process_rank} map.

The process then handles node serialization and migrations. Exported nodes becomes DISTANT.

Parameters

partition export partition

Implements fpmas::api::graph::DistributedGraph< T >.

◆ synchronize() [1/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::synchronize ( )

overridevirtual

Synchronizes the DistributedGraph.

This function acts as a synchronization barrier : all processes blocks until all other perform a synchronize() call.

The synchronization process involves two main steps :

Link and Removed node synchronization (using synchronizationMode().getSyncLinker().synchronize())
Node Data synchronization (using synchronizationMode().getDataSync().synchronize())

Different synchronization modes might define different policies to perform those synchronizations.

In any case, as specified in the corresponding function, it is guaranteed that :

links created with link() are committed, i.e. they are properly reported on other processes potentially involved, and added to the local graph if not done yet.
links destroyed with unlink() are properly removed from all the processes
nodes removed with removeNode() are properly removed from all the processes

Since all nodes are synchronized, the getUnsyncNodes() buffer is cleared.

Implements fpmas::api::graph::DistributedGraph< T >.

◆ synchronize() [2/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::synchronize	(	std::unordered_set< NodeType * >	nodes,
		bool	synchronize_links = `true`
	)

overridevirtual

Partially synchronizes the graph, as specified in the synchronize() method, except that the synchro::DataSync::synchronize(std::unordered_set<api::graph::DistributedNode<T>*>) method is used with the specified nodes instead.

Links synchronization is regularly performed with synchronizationMode().getSyncLinker().synchronize(), unless synchronize_links is false.

nodes are not required to be contained in getUnsyncNodes(), but are removed from this buffer if they do.

The specified nodes list might contain LOCAL and DISTANT nodes: it is the responsibility of the implemented synchro::DataSync to eventually not do anything with LOCAL nodes.

Parameters

nodes	nodes to synchronize
synchronize_links	specifies if synchro::SyncLinker::synchronize() must be called

Implements fpmas::api::graph::DistributedGraph< T >.

◆ buildNode() [1/2]

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC >::NodeType * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::buildNode ( T && data = std::move(T()) )

overridevirtual

Builds a new LOCAL node into the graph.

The specified data is moved into the built node.

The node is inserted into the graph, triggering insert node events as specified in Graph::insert(NodeType*).

Parameters

data node data

Returns: pointer to built node

Implements fpmas::api::graph::DistributedGraph< T >.

◆ buildNode() [2/2]

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC >::NodeType * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::buildNode ( const T & data )

overridevirtual

Builds a new LOCAL node into the graph.

The specified data is copied to the built node.

The node is inserted into the graph, triggering insert node events as specified in Graph::insert(NodeType*).

Parameters

data node data

Returns: pointer to built node

Implements fpmas::api::graph::DistributedGraph< T >.

◆ insertDistant()

template<DIST_GRAPH_PARAMS >

api::graph::DistributedNode< T > * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::insertDistant ( api::graph::DistributedNode< T > * node )

overridevirtual

Inserts a temporary DISTANT node into the graph.

The node is guaranteed to live at least until the next synchronize() call.

Once inserted, the temporary node can eventually be used as any other DISTANT node, and so can be linked to existing LOCAL and DISTANT nodes or to query data.

However, the DistributedNode::location() must be initialized manually, otherwise operations above might produce unexpected results.

The node must be dynamically allocated, and the DistributedGraph implementation automatically takes its ownership.

If a node with the same ID is already contained in the graph, the node is simply deleted and a pointer to the existing node is returned. Else, a pointer to the inserted node is returned.

This method can notably be used to implement distributed graph initialization algorithms. Indeed, if a node 0 is built on process 0 and node 1 is built on process 1, it is at first glance impossible to create a link from node 0 to node 1.

But, for example knowing that the node 1 is necessarily instanciated on process 1, it is possible to manually insert a DISTANT representation of node 1 using insertDistant() on process 0, what allows to build a link from node 0 to node 1 on process 0. Such link will be committed at the latest at the next synchronize() call and imported on process 1.

Parameters

node	temporary DISTANT node to manually insert in the graph

Implements fpmas::api::graph::DistributedGraph< T >.

◆ link()

template<DIST_GRAPH_PARAMS >

DistributedGraph< DIST_GRAPH_PARAMS_SPEC >::EdgeType * fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::link	(	NodeType *const	source,
		NodeType *const	target,
		api::graph::LayerId	layer_id
	)

overridevirtual

Links source to target on the specified layer.

The two nodes might be LOCAL, only one of them might be DISTANT, or **both of them might be DISTANT**. In this last case, it is however required that the two DISTANT representations of source and target nodes already exist in the local graph, i.e. each node is already connected to at least one LOCAL node.

In consequence the edge is not guaranteed to be inserted in the graph upon return, since its creation might require inter-process communications, depending on the synchronization mode.

However, it is guaranteed that upon return of the next synchronize() call, the edge is properly inserted in the graphs hosted by the processes that might require it, i.e. the processes that host at least one of its source and target nodes.

In any case, insert edge callbacks, as specified in Graph::insert(EdgeType*), are called only when the edge is effectively inserted into the graph.

Parameters

source	source node
target	target node
layer_id	layer id

Implements fpmas::api::graph::DistributedGraph< T >.

◆ removeNode() [1/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::removeNode ( api::graph::DistributedNode< T > * node )

overridevirtual

Globally removes the specified node from the graph.

The removed node might be DISTANT or LOCAL. The node is not guaranteed to be effectively removed upon return, since it might be involved in inter-process communications, depending on the synchronization mode.

However, it is guaranteed that upon return of the next synchronize() call, the node (and its connected edges) are completely removed from all the processes.

In any case, Erase node callbacks, as specified in Graph::erase(NodeType*), are called only when the node is effectively erased from the graph.

The node is assumed to belong to the graph, behavior is unspecified otherwise.

Parameters

node	pointer to node to remove

Implements fpmas::api::graph::DistributedGraph< T >.

◆ removeNode() [2/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::removeNode ( DistributedId id )

inlineoverridevirtual

Globally removes the node with the specified id from the graph.

Equivalent to

removeNode(getNode(id));

fpmas::graph::Graph< api::graph::DistributedNode< T >, api::graph::DistributedEdge< T > >::getNode

api::graph::DistributedNode< T > * getNode(NodeIdType) override

Definition: graph.h:228

fpmas::graph::detail::DistributedGraph::removeNode

void removeNode(api::graph::DistributedNode< T > *) override

Definition: distributed_graph.h:630

See also: removeNode(NodeType*)

Parameters

id	of the node to remove

Implements fpmas::api::graph::DistributedGraph< T >.

◆ unlink() [1/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::unlink ( EdgeType * edge )

overridevirtual

Globally unlinks the specified edge.

The specified edge might be LOCAL or DISTANT.

In consequence the edge is not guaranteed to be effectively unlinked upon return, since it might be involved in inter-process communications, depending on the synchronization mode.

However, it is guaranteed that upon return of the next synchronize() call, the edge is completely removed from all the processes.

In any case, Erase edge callbacks, as specified in Graph::erase(EdgeType*), are called only when the edge is effectively erased from the graph.

Parameters

edge	edge to remove

Implements fpmas::api::graph::DistributedGraph< T >.

◆ unlink() [2/2]

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::unlink ( DistributedId id )

inlineoverridevirtual

Globally unlinks the edge with the specified id.

Equivalent to

unlink(getEdge(id));

fpmas::graph::Graph< api::graph::DistributedNode< T >, api::graph::DistributedEdge< T > >::getEdge

api::graph::DistributedEdge< T > * getEdge(EdgeIdType) override

Definition: graph.h:246

fpmas::graph::detail::DistributedGraph::unlink

void unlink(EdgeType *) override

Definition: distributed_graph.h:395

See also: unlink(EdgeType*)

Parameters

id	of the edge to unlink

Implements fpmas::api::graph::DistributedGraph< T >.

◆ switchLayer()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::switchLayer	(	EdgeType *	edge,
		api::graph::LayerId	layer_id
	)

overridevirtual

Switches the edge to the specified layer.

Currently, this operation is only available for LOCAL edges.

The edge is properly re-linked to its source and target node, while the Edge::setLayer() method does not.

Parameters

edge	edge to switch
layer_id	new layer

Implements fpmas::api::graph::DistributedGraph< T >.

◆ addCallOnSetLocal()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::addCallOnSetLocal ( SetLocalNodeCallback * callback )

inlineoverridevirtual

Adds a set LOCAL node callback.

A DistributedNode is set LOCAL in the following situations :

the node is imported (with importNode())
the node is built in the local graph (with buildNode())

Parameters

callback set local node callback

Implements fpmas::api::graph::DistributedGraph< T >.

◆ onSetLocalCallbacks()

template<DIST_GRAPH_PARAMS >

std::vector< SetLocalNodeCallback * > fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::onSetLocalCallbacks ( ) const

inlineoverridevirtual

Current set local callbacks list.

Returns: set local callbacks

Implements fpmas::api::graph::DistributedGraph< T >.

◆ addCallOnSetDistant()

template<DIST_GRAPH_PARAMS >

void fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::addCallOnSetDistant ( SetDistantNodeCallback * callback )

inlineoverridevirtual

Adds a set DISTANT callback.

A DistributedNode is set DISTANT in the following situations :

the node is exported to an other process (i.e. in a distribute() call) AND persist in the graph (i.e. at least one LOCAL node is still connected to this node)
the node is created as a missing source or target in the importEdge process

Parameters

callback set distant node callback

Implements fpmas::api::graph::DistributedGraph< T >.

◆ onSetDistantCallbacks()

template<DIST_GRAPH_PARAMS >

std::vector< SetDistantNodeCallback * > fpmas::graph::detail::DistributedGraph< DIST_GRAPH_PARAMS >::onSetDistantCallbacks ( ) const

inlineoverridevirtual

Current set distant callbacks list.

Returns: set distant callbacks

Implements fpmas::api::graph::DistributedGraph< T >.

The documentation for this class was generated from the following file:

src/fpmas/graph/distributed_graph.h

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ NodeType

◆ EdgeType

Constructor & Destructor Documentation

◆ DistributedGraph() [1/2]

◆ DistributedGraph() [2/2]

Member Function Documentation

◆ operator=()

◆ getMpiCommunicator() [1/2]

◆ getMpiCommunicator() [2/2]

◆ currentNodeId()

◆ setCurrentNodeId()

◆ currentEdgeId()

◆ setCurrentEdgeId()

◆ importNode()

◆ importEdge()

◆ getUnsyncNodes()

◆ getSyncMode()

◆ synchronizationMode()

◆ getLocationManager() [1/2]

◆ getLocationManager() [2/2]

◆ balance() [1/4]

◆ balance() [2/4]

◆ balance() [3/4]

◆ balance() [4/4]

◆ distribute()

◆ synchronize() [1/2]

◆ synchronize() [2/2]

◆ buildNode() [1/2]

◆ buildNode() [2/2]

◆ insertDistant()

◆ link()

◆ removeNode() [1/2]

◆ removeNode() [2/2]

◆ unlink() [1/2]

◆ unlink() [2/2]

◆ switchLayer()

◆ addCallOnSetLocal()

◆ onSetLocalCallbacks()

◆ addCallOnSetDistant()

◆ onSetDistantCallbacks()
