#include <grid.h>

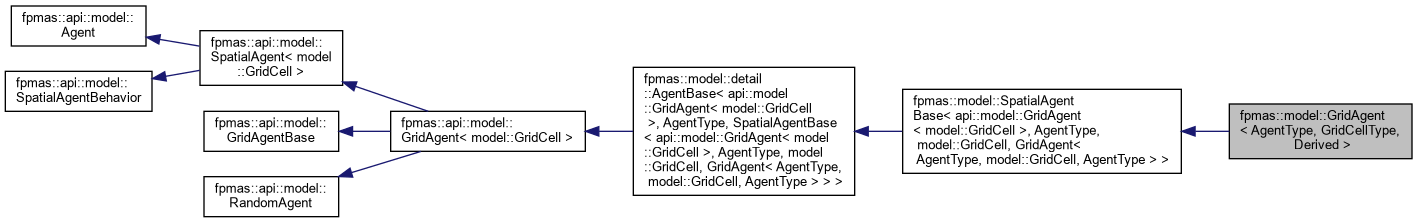

Inheritance diagram for fpmas::model::GridAgent< AgentType, GridCellType, Derived >:

[legend]

Collaboration diagram for fpmas::model::GridAgent< AgentType, GridCellType, Derived >:

[legend]

Public Member Functions
DiscretePoint	locationPoint () const override

random::FPMAS_AGENT_RNG &	rd () override

void	seed (std::FPMAS_AGENT_RNG::result_type seed) override

Public Member Functions inherited from fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >
void	initLocation (model::GridCell *cell) override

DistributedId	locationId () const override

model::GridCell *	locationCell () const override

Public Member Functions inherited from fpmas::model::detail::AgentBase< api::model::GridAgent< model::GridCell >, AgentType, SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > > >
	AgentBase ()=default

	AgentBase (const AgentBase &agent)=default

	AgentBase (AgentBase &&)=default

AgentBase &	operator= (const AgentBase &agent)=default

AgentBase &	operator= (AgentBase &&)

GroupId	groupId () const override

std::vector< GroupId >	groupIds () const override

void	setGroupId (api::model::GroupId id) override

void	addGroupId (api::model::GroupId id) override

void	removeGroupId (api::model::GroupId id) override

api::model::AgentGroup *	group () override

const api::model::AgentGroup *	group () const override

std::vector< const api::model::AgentGroup * >	groups () const override

std::vector< api::model::AgentGroup * >	groups () override

void	setGroup (api::model::AgentGroup *group) override

void	addGroup (api::model::AgentGroup *group) override

void	removeGroup (api::model::AgentGroup *group) override

void	setGroupPos (api::model::GroupId gid, std::list< api::model::Agent * >::iterator pos) override

std::list< api::model::Agent * >::iterator	getGroupPos (api::model::GroupId gid) const override

api::model::TypeId	typeId () const override

api::model::Agent *	copy () const override

void	copyAssign (api::model::Agent *agent) override

void	moveAssign (api::model::Agent *agent) override

api::model::AgentNode *	node () override

const api::model::AgentNode *	node () const override

void	setNode (api::model::AgentNode *node) override

api::model::Model *	model () override

const api::model::Model *	model () const override

void	setModel (api::model::Model *model) override

api::model::AgentTask *	task () override

const api::model::AgentTask *	task () const override

api::model::AgentTask *	task (api::model::GroupId id) override

const api::model::AgentTask *	task (api::model::GroupId id) const override

void	setTask (api::model::AgentTask *task) override

void	setTask (api::model::GroupId id, api::model::AgentTask *task) override

const std::unordered_map< api::model::GroupId, api::model::AgentTask * > &	tasks () override

virtual void	act () override

Neighbors< NeighborAgentType >	outNeighbors () const

Neighbors< NeighborAgentType >	outNeighbors (api::graph::LayerId layer) const

Neighbors< NeighborAgentType >	inNeighbors () const

Neighbors< NeighborAgentType >	inNeighbors (api::graph::LayerId layer) const

Public Member Functions inherited from fpmas::api::model::SpatialAgent< model::GridCell >
virtual DistributedId	locationId () const=0

virtual model::GridCell *	locationCell () const=0

virtual void	initLocation (Cell *cell)=0

virtual const Range< model::GridCell > &	mobilityRange () const=0

virtual const Range< model::GridCell > &	perceptionRange () const=0

Public Member Functions inherited from fpmas::api::model::Agent
virtual GroupId	groupId () const =0

virtual std::vector< GroupId >	groupIds () const =0

virtual void	setGroupId (GroupId id)=0

virtual void	addGroupId (GroupId id)=0

virtual void	removeGroupId (GroupId id)=0

virtual AgentGroup *	group ()=0

virtual const AgentGroup *	group () const =0

virtual std::vector< AgentGroup * >	groups ()=0

virtual std::vector< const AgentGroup * >	groups () const =0

virtual void	setGroup (AgentGroup *group)=0

virtual void	addGroup (AgentGroup *group)=0

virtual void	removeGroup (AgentGroup *group)=0

virtual void	setGroupPos (api::model::GroupId gid, std::list< Agent * >::iterator pos)=0

virtual std::list< Agent * >::iterator	getGroupPos (api::model::GroupId gid) const =0

virtual TypeId	typeId () const =0

virtual Agent *	copy () const =0

virtual void	copyAssign (Agent *agent)=0

virtual void	moveAssign (Agent *agent)=0

virtual AgentNode *	node ()=0

virtual const AgentNode *	node () const =0

virtual void	setNode (AgentNode *node)=0

virtual Model *	model ()=0

virtual const Model *	model () const =0

virtual void	setModel (Model *model)=0

virtual AgentTask *	task ()=0

virtual const AgentTask *	task () const =0

virtual void	setTask (AgentTask *task)=0

virtual AgentTask *	task (GroupId id)=0

virtual const AgentTask *	task (GroupId id) const =0

virtual void	setTask (GroupId id, AgentTask *task)=0

virtual const std::unordered_map< GroupId, AgentTask * > &	tasks ()=0

virtual void	act ()=0

virtual void	handleNewMove ()=0

virtual void	handleNewPerceive ()=0

virtual DiscretePoint	locationPoint () const =0

virtual api::random::Generator< std::FPMAS_AGENT_RNG::result_type > &	rd ()=0

virtual void	seed (std::FPMAS_AGENT_RNG::result_type seed)=0

Protected Member Functions
void	moveTo (GridCellType *cell) override

void	moveTo (DiscretePoint point) override

Protected Member Functions inherited from fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >
void	updateLocation (model::GridCell *cell)

void	handleNewMove () override

void	handleNewPerceive () override

void	moveTo (DistributedId id) override

Neighbors< model::GridCell >	mobilityField () const

Neighbors< NeighborType >	perceptions () const

Protected Member Functions inherited from fpmas::api::model::GridAgent< model::GridCell >
virtual void	moveTo (DiscretePoint point)=0

Protected Member Functions inherited from fpmas::api::model::SpatialAgent< model::GridCell >
virtual void	moveTo (DistributedId id)=0

virtual void	moveTo (Cell *cell)=0

virtual void	moveTo (DiscretePoint point)=0

Additional Inherited Members
Public Types inherited from fpmas::model::SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >
typedef SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > >	JsonBase

Public Types inherited from fpmas::model::detail::AgentBase< api::model::GridAgent< model::GridCell >, AgentType, SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > > >
typedef AgentType	FinalAgentType

Public Types inherited from fpmas::api::model::SpatialAgent< model::GridCell >
typedef model::GridCell	Cell

Static Public Attributes inherited from fpmas::model::detail::AgentBase< api::model::GridAgent< model::GridCell >, AgentType, SpatialAgentBase< api::model::GridAgent< model::GridCell >, AgentType, model::GridCell, GridAgent< AgentType, model::GridCell, AgentType > > >
static const api::model::TypeId	TYPE_ID

Detailed Description

template<typename AgentType, typename GridCellType = model::GridCell, typename Derived = AgentType>
class fpmas::model::GridAgent< AgentType, GridCellType, Derived >

api::model::GridAgent implementation.

Template Parameters

AgentType	final GridAgent type (i.e. the most derived type from this GridAgent)
GridCellType	Type of cells constituting the Grid on which the agent is moving. Must extend api::model::GridCell.
Derived	direct derived class, or at least the next class in the serialization chain

Member Function Documentation

◆ moveTo() [1/2]

template<typename AgentType , typename GridCellType , typename Derived >

void fpmas::model::GridAgent< AgentType, GridCellType, Derived >::moveTo ( GridCellType * cell )

overrideprotected

Moves to the input Cell.

The input Cell is not required to be contained in the current mobility field of this SpatialAgent, what allows:

To initialize the location of this SpatialAgent (since in this case, the mobility field is still empty)
A SpatialAgent to move an other DISTANT SpatialAgent.

The execution of a DistributedMoveAlgorithm is required to commit the operation and update mobility fields and perceptions. However, this can be handled automatically on specific AgentGroups: see SpatialModel::buildMoveGroup().

More precisely, the current location, if defined, is unlinked, and so does the mobility field and perceptions, and a link from this SpatialAgent to cell is created on the NEW_LOCATION layer. In consequence, the behavior of locationCell() is undefined until a DistributedMoveAlgorithm is executed.

Notice that performing an other moveTo() operation before the previous is committed produces an undefined behavior.

Parameters

cell	cell to which this SpatialAgent should move.

◆ moveTo() [2/2]

template<typename AgentType , typename GridCellType , typename Derived >

void fpmas::model::GridAgent< AgentType, GridCellType, Derived >::moveTo ( DiscretePoint point )

overrideprotectedvirtual

Moves to the Cell at the specified point.

Notice that it is assumed that at most one GridCell can be located at each point.

If no Cell at point can be found in the current mobility field, an OutOfMobilityFieldException is thrown.

Parameters

point discrete coordinates

Exceptions

OutOfMobilityFieldException

Implements fpmas::api::model::GridAgentBase.

◆ locationPoint()

template<typename AgentType , typename GridCellType = model::GridCell, typename Derived = AgentType>

DiscretePoint fpmas::model::GridAgent< AgentType, GridCellType, Derived >::locationPoint ( ) const

inlineoverridevirtual

Returns the current location of the GridAgent as discrete coordinates.

The behavior of this method is similar to the SpatialAgent::locationId() method: considering the moveTo(DiscretePoint) method, the agent can move using this kind of operations:

agent->moveTo(neighbor->locationPoint())

Returns: location of the GridAgent

Implements fpmas::api::model::GridAgentBase.

◆ rd()

template<typename AgentType , typename GridCellType = model::GridCell, typename Derived = AgentType>

random::FPMAS_AGENT_RNG & fpmas::model::GridAgent< AgentType, GridCellType, Derived >::rd ( )

inlineoverridevirtual

Returns a reference to the sequential random number bound to this agent.

The implementation should ensure that each agent produces an indenpendent random number sequence.

This can be perfomed:

Bounding a sequential generator to all agents, and seed() them independently.
Using a global DistributedGenerator

Implements fpmas::api::model::RandomAgent.

◆ seed()

template<typename AgentType , typename GridCellType = model::GridCell, typename Derived = AgentType>

void fpmas::model::GridAgent< AgentType, GridCellType, Derived >::seed ( std::FPMAS_AGENT_RNG::result_type seed )

inlineoverridevirtual

Seeds the generator bound to this agent.

Note: The generator is seeded from this agent, even if it is shared by several agents, for example in the case of a DistributedGenerator.

Implements fpmas::api::model::RandomAgent.

The documentation for this class was generated from the following file:

src/fpmas/model/spatial/grid.h
